Product Details:
|
| Voltage: | 220V Or 380V Or 415V | Color: | Customized |
|---|---|---|---|
| Max. Speed: | 13m/min | Max. Material Width: | 600mm |
| Paper Grammage Range: | 80-150gsm | Paper Bubble Diameter: | 13mm |
| Paper Bubble Height: | 6mm | ||
| Highlight: | 120W Paper Corrugator Machine,Paper Corrugator Machine 13m/Min,120W Bubble Paper Forming Machine |
||

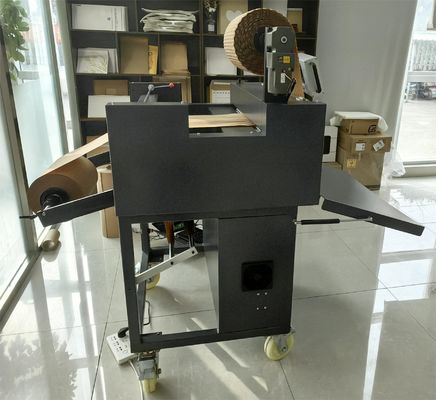

Bubble Paper Forming Machine
Model: GY-600S
Specification of 600 series:
| Model | GY-600S |
| Full servo drive, automatic cut off | |
| Max. working speed | 13m/min |
| Paper grammage range | 80-150gsm |
| Max. material width | 600mm |
| Paper material type |
Reel or Continuous folded sheet |
| Paper bubble diameter | 13mm |
| Paper bubble height | 6mm |
| Power: | 100-230V/120W |
| Handle | Installed |
| Emergency stop | Equipped |
| Foot pedal | Equipped |
| Cut off blade | Equipped |
| Machine dimension | 780x620x440mm |
| Package dimension | 850x700x500mm |
| Cut off blade package size | 850x710x620mm |
| Machine weight | 500kg |
| Weight with package | 600kg |
