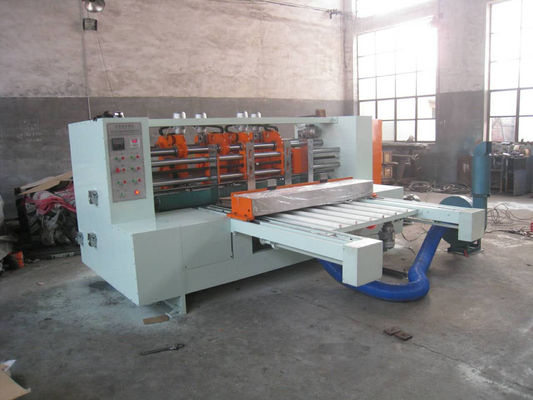

150 Pcs/Min Corrugated Slotting Machine Board Rotary Slotter Machine K-C-1220E

I'm Online Chat Now

150 Pcs/Min Corrugated Slotting Machine Board Rotary Slotter Machine K-C-1220E

150 Pcs/Min Corrugated Slotting Machine Board Rotary Slotter Machine K-C-1220E
150 Pcs/Min Corrugated Slotting Machine Board Rotary Slotter Machine K-C-1220E 150 Pcs/Min Corrugated Slotting Machine Board Rotary Slotter Machine K-C-1220E

Large Image :  150 Pcs/Min Corrugated Slotting Machine Board Rotary Slotter Machine K-C-1220E

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: K-C-1220E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

150 Pcs/Min Corrugated Slotting Machine Board Rotary Slotter Machine K-C-1220E

Description
Power Supply: 220V Or 380V Or 415V Color: Customized
Max. Machine Speed: 150 Pcs/min Max. Feeding Size: 1200×2000mm
Min. Feeding Size: 380×710mm Min. Slotting Space: 260x65x260x65mm
Max. Box Height: 600mm Min. Box Height: 95mm
High Light:

Board Corrugated Slotting Machine

,

150 Pcs/Min Corrugated Slotting Machine

,

Board Rotary Slotter Machine

Lead Edge Feeder Corrugated Board Rotary Slotter

Model: K-C-1220E





Brief Introduction:

  • The lead edge feeder rotary slotter is a useful equipment for making corrugation box.
  • Customer can do flexo printing on single sheet, then do laminating with single wall sheet. After that can use this slotting machine do creasing, trimming, slotting and angle cutting of corrugated boxes at one time.



Characteristics:

  • Wheel type lead edge feeder for accurate feeding, feeding precision is +/-1mm.
  • Manual adjustment of right/left/front stop according to sheet size.
  • Electric adjustment of rear stop for moving and elevating.
  • Electric slotting rotary position adjustment.

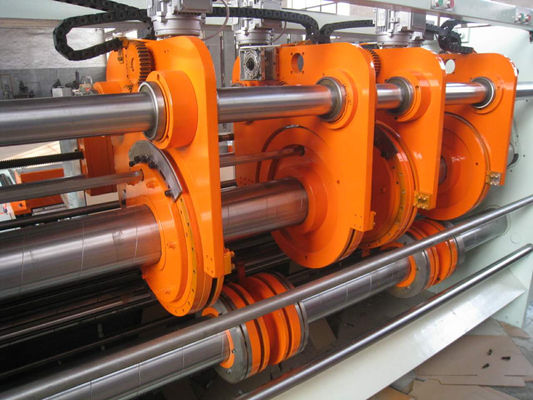

  • Electric synchronous adjustment for slotting blade lateral moving. PLC control and can store 99 order data;
  • Manual gap adjustment with worm reducer with graduated dial indication, ranging from 1 to 11mm.
  • Zigzag slotting knife with 7mm thickness is made of alloy steel. It featuring with sharp edge and high hardness.
  • The punching device is available (additional option, not for free).
  • Safety cover is installed to make sure operator safe.



Specifications:

Item 1200×2000
Max. working speed 150 pcs/min
Feeding accuracy ±1mm
Max. feeding size 1200×2000mm
Min. feeding size 380×710mm
Min. slotting space 260x65x260x65mm
Max. box height 600mm
Min. box height 95mm
Slotting knife thickness 7mm
Total power 20KW
Machine weight 7000KG
Machine dimension 4300x2000x1650mm



Other items:

Wallboard thickness 40mm
Main bearing brand Ha Er Bing
Main gear material 45# steel
Electric parts Schneider brand
Creasing wheel type Male to flat
Top slotting shaft diameter 156mm
Top slotting shaft thickness 25mm
Bottom slotting shaft diameter 156mm
Bottom slotting shaft thickness 25mm
Creasing shaft diameter 110mm
Creasing shaft thickness 20mm
Feeding roller diameter 136mm
Feeding roller thickness 16mm
