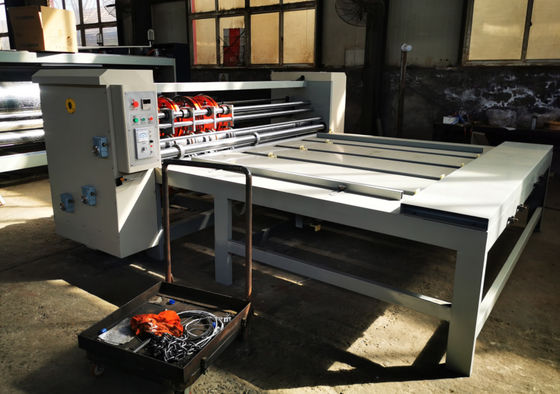

Corrugated Board Rotary Slotting Machine K-B-1426 Chain Feeding Rotary Slotter

I'm Online Chat Now

Corrugated Board Rotary Slotting Machine K-B-1426 Chain Feeding Rotary Slotter

Corrugated Board Rotary Slotting Machine K-B-1426 Chain Feeding Rotary Slotter
Corrugated Board Rotary Slotting Machine K-B-1426 Chain Feeding Rotary Slotter

Large Image :  Corrugated Board Rotary Slotting Machine K-B-1426 Chain Feeding Rotary Slotter

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: K-B-1426
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

Corrugated Board Rotary Slotting Machine K-B-1426 Chain Feeding Rotary Slotter

Description
Power Supply: 380V OR 220V OR 415V Color: Customized
Max. Machine Speed: 60 Pcs/min Working Speed: 30-50 Pcs/min
Max. Feeding Size: 1400x2600mm Min. Feeding Size: 360x750mm
Voltage: 220V Or 380V Or 415V
High Light:

Chain Feeder Rotary Slotting Machine

,

Corrugated Rotary Slotting Machine

,

Corrugated Chain Feeding Rotary Slotter

Chain Feeder Corrugated Board Rotary Slotter

Model: K-B-1426



Specification:

Model K-B-1426
Max. machine speed 60 pcs/min
Working speed 30-50 pcs/min
Max. feeding size 1400x2600mm
Min. feeding size 360x750mm
Slotting knife thickness 7mm
Power required 4.5KW



Other items:

Wallboard thickness 40mm
Main bearing brand Ha Er Bing
Main gear material 45# steel
Electric parts brand Schneider
Creasing wheel type Male to female





Manual regulating slotting unit

Corrugated Board Rotary Slotting Machine K-B-1426 Chain Feeding Rotary Slotter 0

Corrugated Board Rotary Slotting Machine K-B-1426 Chain Feeding Rotary Slotter 1 Corrugated Board Rotary Slotting Machine K-B-1426 Chain Feeding Rotary Slotter 2

Structure

  Slotting unit include pre-creasing rollers, final creasing rollers, slotting blade rollers

  Top and bottom creasing wheel roller diameter is 110mm, thickness is 20mm

  Creasing roller gap can be adjusted from 0-12mm

  Top slotting shaft diameter is 176mm, thickness is 20mm

  Bottom slotting shaft diameter is 156mm, thickness is 16mm



Regulating

  Box height manual regulating

  Slotting registration electric regulating

  Slotting blade position synchronous regulating



Slotting blade, trimming blade

  Adopt 4 slotting blades

  Slotting blade thickness: 7mm

  Trimming blade is made with alloy steel, ground and heat treated;



Hole punching device (Optional part)

  Making hand holes on corrugated box with die punching device





PLC control slotting unit (for option)

Corrugated Board Rotary Slotting Machine K-B-1426 Chain Feeding Rotary Slotter 3

Corrugated Board Rotary Slotting Machine K-B-1426 Chain Feeding Rotary Slotter 4 Corrugated Board Rotary Slotting Machine K-B-1426 Chain Feeding Rotary Slotter 5

Structure

  Slotting unit include pre-creasing rollers, final creasing rollers, slotting blade rollers

  Top and bottom creasing wheel roller diameter is 110mm, thickness is 20mm

  Creasing roller gap can be adjusted from 0-12mm

  Top slotting shaft diameter is 176mm, thickness is 20mm

  Bottom slotting shaft diameter is 156mm, thickness is 16mm



Regulating

  Box height electric regulating, controlled by PLC

  Slotting registration electric regulating, controlled by PLC

  Slotting blade position synchronous regulated by motor, controlled by PLC



Slotting blade, trimming blade

  Adopt 4 slotting blades

  Slotting blade thickness: 7mm

  Trimming blade is made with alloy steel, ground and heat treated;



Hole punching device (Optional part)

  Making hand holes on corrugated box with die punching device





Photos:
Corrugated Board Rotary Slotting Machine K-B-1426 Chain Feeding Rotary Slotter 6


Corrugated Board Rotary Slotting Machine K-B-1426 Chain Feeding Rotary Slotter 7
