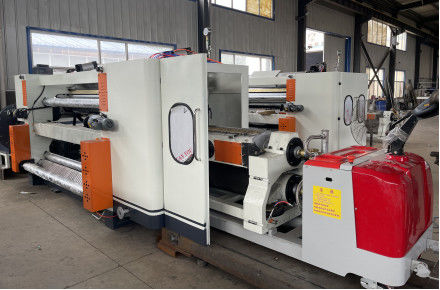

Quick Roll Changing Cassette Single Facer Width 1600mm 1800mm 2000mm 2200mm

Cassette Type Single Facer (quick roll changing)

Model: SF-320E

Main characteristics:

• Design speed:150m/min
• Width: 1600mm / 1800mm / 2000mm / 2200mm / 2500mm
• Main flute roller: ¢ 320mm (according corrugation differ), pressure roller ¢ 370mm, preheat roll ¢ 400mm.
• Negative pressure design, low heat loss, the core sheet can be uniformly pressed and attached to the surface of the corrugating rollers, the corrugated shape better, because uniform pressure, better corrugated top, evenly coated glue, so sided corrugated fit the situation better.
• Quick roll change, 15 minutes, in order to replace the trolley trailer containing Corrugated, Corrugated to the entire group of motor drive, into the machine, the machine is fixed on the base, with just a few button switch can be completed quickly and easily Corrugated replacement.
• Corrugated using 48CRMO quality steel, heat treatment, surface treatment after grinding tungsten carbide.
• Corrugating roll and pressure roll control system using a balloon having high stability, but also has the effect of controlling the buffer gas pressure.
• Glue volume control with electric adjustment, electric tapping devices, adhesive systems can operate independently of the host to stop and prevent the glue dry.
• Mobile gluing system, in addition to easy to clean, the more conducive maintenance, repair work.
• Simple operation control system, touch screen interface, with color drawings display operating status, function selection, fault indication, exclusion and parameter settings, etc. can exhibit this machine fully functional, easy to operate, user-friendly.
• With built-in pre-conditioner spray system, temperature and moisture regulating core paper.
• Lord, vice Corrugated and pressure roller bearings are used in high-temperature grease to ensure bearing life and smooth operation.

Technical parameters:

• Working width: 1600mm / 1800mm / 2000mm / 2200mm / 2500mm
• Operation side: left or right (depends on customer’s factory)
• Design speed: 150m/min
• Temperature Control: 160-200℃
• Compressed air pressure: 0.4-0.9Mpa
• Steam pressure: 0.8-1.3Mpa
• Corrugated type (UV or UVV)

Roller diameter:
