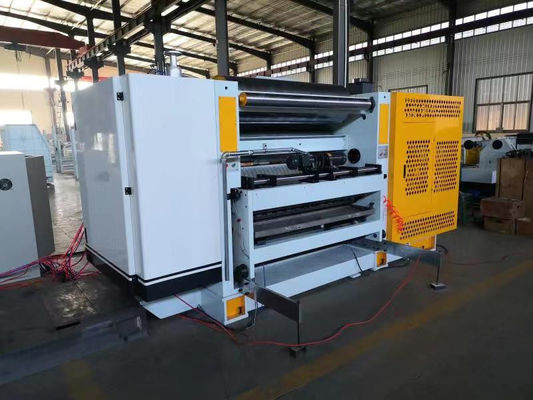

Industrial Cassette Type Single Facer For Corrugated Paper Line SF-280D-1600

Cassette Type Single Facer

Model: SF-280D-1600

Feature:

• Design speed:100m/min
• Width: 1600mm
• Main flute roller: ¢ 280mm (according corrugation differ), pressure roller ¢ 320mm, preheat roll ¢ 400mm.
• Negative pressure design, low heat loss, the core sheet can be uniformly pressed and attached to the surface of the corrugating rollers, the corrugated shape better, because uniform pressure, better corrugated top, evenly coated glue, so sided corrugated fit the situation better.
• Quick roll change, 10 minutes, in order to replace the trolley trailer containing Corrugated, Corrugated to the entire group of motor drive, into the machine, the machine is fixed on the base, with just a few button switch can be completed quickly and easily Corrugated replacement.
• Corrugated using 48CRMO quality steel, heat treatment, surface treatment after grinding tungsten carbide, surface hardness over HV1200.
• Corrugating roll and pressure roll control system using a balloon (rubber air bag) having high stability, but also has the effect of controlling the buffer gas pressure.
• Glue volume control with electric adjustment, electric tapping devices, adhesive systems can operate independently of the host to stop and prevent the glue dry.
• Mobile gluing system, in addition to easy to clean, the more conducive maintenance, repair work.
• Simple operation control system, touch screen interface, with color drawings display operating status, function selection, fault indication, exclusion and parameter settings, etc. can exhibit this machine fully functional, easy to operate, user-friendly.
• With built-in pre-conditioner spray system, temperature and moisture regulating core paper.
• Corrugated and pressure roller bearings are used in high-temperature grease to ensure bearing life and smooth operation.

Technical parameters:

• Working width: 1600mm
• Operation side: left or right (depends on customer’s factory)
• Design speed: 100m/min
• Temperature Control: 160—200℃
• Compressed air pressure: 0.4-0.9Mpa
• Steam pressure: 0.8—1.3Mpa
• Corrugated type (UV or UVV)

Roller diameter:

• Main corrugated roller: ¢ 280mm
• Pressure roller: ¢ 320mm Gluing roller: ¢ 215mm
• Paste roller: ¢ 124mm Pre-heater roller: ¢ 400mm

Motor parameter:

• Main frequency motor: 18.5KW Rated voltage: 380V 50Hz Continuous (S1) working standard
• Suction motor: 11KW Rated voltage: 380V 50Hz Continuous (S1) working standard
• Gel reducer: 100W Rated voltage: 380V 50Hz Short (S2) working standard
• Gel gap motor: 250W Rated voltage: 380V 50Hz Short (S2) working standard
• Glue pump motor: 2.2KW Rated voltage: 380V 50Hz Continuous (S1) working standard
