3 Ply Corrugated Cardboard Production Line 80m/min With Electrical Heating MC80-1400

3 ply corrugated cardboard production line with electrical heating
Model: MC80-1400

Technical parameter requirement:

• Model: MC80-1400
• Total length About 45.9 meters (depend on base drawing)
• Design speed: 80 m/min
• Working speed: 20-40 m/min
• Effective width: 1400mm
• Flute: A / C / B / E / F as per customer’s requirement

• Air pressure and consumption
  Pressure 0.8 - 1.1 MPa Consumption about: 1.5 m3/min
• Slitting precision: ±1mm
• Cutting length and precision: 500 - 9999mm, ±1mm
• Total power about ±490KW (380V, 50HZ)
  Working power require 410-450KW
• Dimension about 45.9m×10m×5m (L×W×H)
• Equipment direction: □ Left side; □ Right side

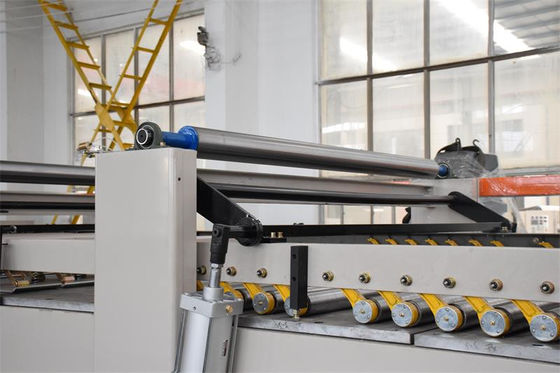

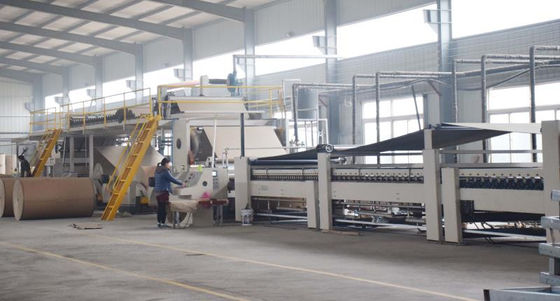

Line layout & photos:

The whole line speed is controlled through variable speed motor.

1. Use electric control cabinet to control machine speed and electric control cabinet of each section can connect with each other.
