Product Details:
|
| Max Feed Size: | 1200 X 2800 Mm | Min Feed Size: | 350 X 600 Mm |
|---|---|---|---|
| Skip Feed Size: | 1500 X 2800 Mm | Max Printing Area: | 1200 X 2760 Mm |
| Max Die Cutting Size: | 1200 X 2760 Mm | Positioning System: | Full Servo One-Key Auto-Positioning |
| Die Cut Compensation: | Independent Servo Drive ±3mm | Pre-Creasing: | Eight-Axis Large Pre-Creasing Servo Dual Mode |
| Slotting Type: | Dual Shaft Dual Blade (Optional) | Feed Mode: | Continuous / Skip Feed |
| Printing Transport: | Vacuum Suction, Ceramic Rollers | ||
| Highlight: | Full Servo Flexo Printer Slotter Die Cutter,Auto-Positioning Die Cut Compensation Machine,1200x2800mm Flexo Printer Die Cutter |
||

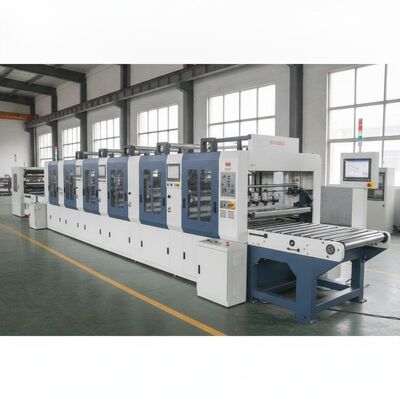

Full Servo Auto-Positioning with Die Cut Compensation | 1200*2800mm | Large Format
The SYKM-H-1228RC is the flagship model with full servo one-key auto-positioning combined with an independent servo-driven die cut compensation system (±3mm). The eight-axis large pre-creasing servo dual-mode operation ensures the highest level of precision for large-format corrugated board processing.
| Transport System | Vacuum suction board transport with ceramic-coated feed rollers for maximum durability |
| Quick Changeover | Quick plate mounting mechanism with automatic ink washing system for minimal downtime |
| Blade Box Material | Non-metallic special composite, rust-free for life |
| Optional | Infrared drying unit for automatic ink curing and enhanced print finish |
| Configuration | Single shaft dual blade slotting; optional dual shaft dual blade for unlimited box height flexibility |
| Auto-Positioning | Pre-creasing, creasing, and slotting blade lateral movement all servo-controlled — one key sets all positions |
| Box Height | Internal gear height structure; sealed to prevent oil contamination on board surface |
| Creasing Quality | Dual destruction wheel, large creasing structure, polyurethane-wrapped upper wheel for board protection |
| Compensation System | Independent servo-driven anvil roller maintains synchronized speed with main die-cutting unit. ±3mm compensation range for consistent dimensional accuracy |
| Optional Configurations | Six-axis large pre-creasing servo dual-mode with full computer die-less cutting; Eight-axis large pre-creasing triple creasing servo dual-mode with full computer die-less cutting |
| Anti-Resonance | Unit-level independent servo drive eliminates resonance during full-sheet die cutting, preserving print quality |
| Parameter | Specification |
| Max Feed Size | 1200 * 2800 mm |
| Min Feed Size | 350 * 600 mm |
| Skip Feed Size | 1500 * 2800 mm |
| Max Printing Area | 1200 * 2760 mm |
| Max Die Cutting Size | 1200 * 2760 mm |
| Positioning | Full Servo One-Key Auto-Positioning |
| Die Cut Compensation | Independent Servo Drive ±3mm |
| Pre-Creasing | Eight-Axis Servo Dual Mode |
| Slotting | Single/Dual Shaft Dual Blade |
| Print Transport | Vacuum Suction, Ceramic Rollers |
Contact our sales team for a customized quotation on the SYKM-H-1228RC. Factory visits and production demonstrations available.
