Product Details:
|
| Max Feed Size: | 1200 X 2400 Mm | Min Feed Size: | 350 X 600 Mm |
|---|---|---|---|
| Skip Feed Size: | 1500 X 2400 Mm | Max Printing Area: | 1200 X 2360 Mm |
| Max Die Cutting Size: | 1200 X 2360 Mm | Positioning System: | Full Servo One-Key Auto-Positioning |
| Slotting Type: | Dual Shaft Dual Blade (Optional) | Pre-Creasing: | Servo-Controlled Multi-Stage |
| Die Cut Compensation: | Independent Servo Drive ±3mm | Feed Mode: | Continuous / Skip Feed |
| Printing Transport: | Vacuum Suction, Ceramic Rollers | ||
| Highlight: | Full Servo Flexo Printer Slotter Die Cutter,Auto-Positioning Flexo Printer 1200x2400mm,One-Key Setup Flexo Die Cutter |
||

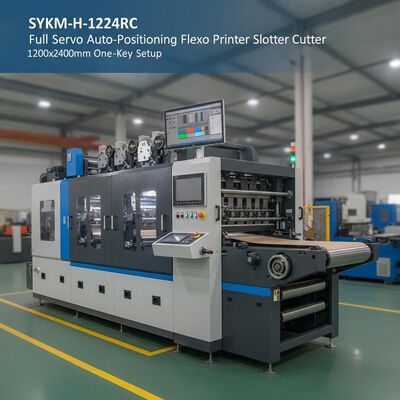

Full Servo Auto-Positioning | 1200*2400mm | One-Key Precision Setup
The SYKM-H-1224RC features a full servo one-key positioning system that automates the lateral movement of pre-creasing wheels, creasing wheels, and slotting blade seats. This intelligent system delivers unmatched precision and stability while dramatically reducing setup time between production runs.
| Transport System | Vacuum suction board transport with ceramic-coated feed rollers for extended service life |
| Quick Changeover | Quick plate mounting mechanism with automatic ink washing system |
| Blade Box | Non-metallic special composite material, permanently rust-free |
| Optional Drying | Infrared drying unit for automatic ink curing and superior print quality |
| Configuration | Single shaft dual blade slotting; optional dual shaft dual blade for maximum flexibility |
| Positioning System | Full servo one-key auto-positioning for pre-creasing, creasing, and slotting blade lateral movement |
| Creasing Quality | Dual destruction wheel with large creasing structure; polyurethane upper wheel protects board integrity |
| Box Height | Internal gear height adjustment; oil contamination prevented by sealed structure |
| Compensation | Independent servo-driven anvil roller compensation (±3mm) ensures consistent die cut dimensional accuracy |
| Anti-Resonance Drive | Independent unit servo drive prevents resonance during full-sheet die cutting for stable print quality |
| Parameter | Specification |
| Max Feed Size | 1200 * 2400 mm |
| Min Feed Size | 350 * 600 mm |
| Skip Feed Size | 1500 * 2400 mm |
| Max Printing Area | 1200 * 2360 mm |
| Max Die Cutting Size | 1200 * 2360 mm |
| Positioning | Full Servo One-Key Auto-Positioning |
| Slotting | Single/Dual Shaft Dual Blade |
| Print Transport | Vacuum Suction, Ceramic Rollers |
Get a personalized quotation for the SYKM-H-1224RC. Our team is ready to assist with specifications and delivery timelines.
