Product Details:
|
| Max Feed Size: | 900 X 2400 Mm | Min Feed Size: | 300 X 600 Mm |
|---|---|---|---|
| Skip Feed Size: | 1200 X 2400 Mm | Max Printing Area: | 900 X 2360 Mm |
| Max Die Cutting Size: | 900 X 2360 Mm | Lead Feeder Type: | Servo-Driven Non-Crush With Industrial AC |
| Feed Mode: | Continuous / Skip Feed | Printing Transport: | Vacuum Suction With Ceramic Roller |
| Slotting Type: | Single Shaft Dual Blade | Die Cut Compensation: | Independent Servo Drive ±3mm |
| Quick Changeover: | Quick Plate Mounting + Auto Wash | ||
| Highlight: | Servo-Driven Lead Feeder Flexo Printer,Industrial AC Cooling Slotter Die Cutter,900x2400mm Flexo Printer Die Cutter |
||

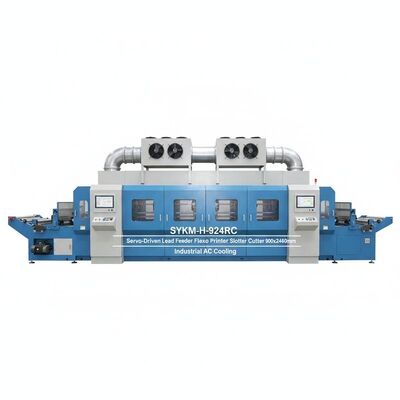

Servo-Driven Lead Feeder with Industrial AC Cooling | 900*2400mm | Precision Feeding
The SYKM-H-924RC integrates a multi-servo non-crush front-edge lead feeder equipped with a dedicated industrial air conditioning unit. This ensures the electrical servo system operates at a stable, controlled temperature even during extended high-volume production runs, maximizing reliability and precision.
| Transport System | Vacuum suction board transport with durable ceramic-coated feed rollers |
| Quick Changeover | Quick plate mounting mechanism and automatic ink washing system minimize downtime between jobs |
| Blade Box Material | Non-metallic special composite, permanently rust-free construction |
| Optional Drying | Compact infrared drying unit for automatic ink curing and superior print finish |
| Configuration | Single shaft dual blade slotting; internal gear box height structure prevents oil contamination on boards |
| Servo Positioning | Pre-creasing wheel, creasing wheel, and slotting blade positions all servo-controlled for one-key precision |
| Creasing Quality | Dual destruction wheel, large creasing structure, polyurethane-wrapped upper wheel protects board surface |
| Compensation System | Independent servo-driven anvil roller compensation (±3mm) for consistent die cut dimensions |
| Anti-Resonance | Unit-level independent servo drive eliminates resonance during full-sheet die cutting operations |
| Parameter | Specification |
| Max Feed Size | 900 * 2400 mm |
| Min Feed Size | 300 * 600 mm |
| Skip Feed Size | 1200 * 2400 mm |
| Max Printing Area | 900 * 2360 mm |
| Max Die Cutting Size | 900 * 2360 mm |
| Lead Feeder | Servo Front Edge + Industrial AC Cooling |
| Print Transport | Vacuum Suction, Ceramic Rollers |
| Slotting | Single Shaft Dual Blade |
Contact our team for a tailored quotation, production video, and machine availability.
