Product Details:
|
| Max Feed Size: | 900 X 2000 Mm | Min Feed Size: | 300 X 600 Mm |
|---|---|---|---|
| Skip Feed Size: | 1200 X 2000 Mm | Max Printing Area: | 900 X 1960 Mm |
| Max Die Cutting Size: | 900 X 1960 Mm | Lead Feeder Type: | Servo-Driven Non-Crush Front Edge |
| Feed Mode: | Continuous / Skip Feed | Printing Transport: | Vacuum Suction With Ceramic Roller |
| Slotting Type: | Single Shaft Dual Blade | Die Cut Compensation: | Independent Servo Drive ±3mm |
| Quick Changeover: | Quick Plate Mounting + Auto Wash | ||
| Highlight: | Servo-Driven Flexo Printer Slotter Die Cutter,Non-Crush Lead Feeder Flexo Printer,900x2000mm Flexo Printer Slotter Die Cutter |
||

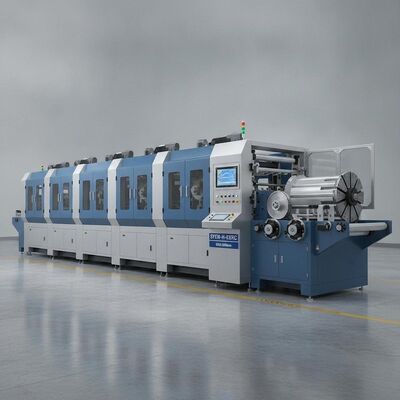

Servo-Driven Non-Crush Lead Feeder | 900*2000mm | Zero Board Damage
The SYKM-H-920RC features a multi-servo non-crush front-edge lead feeder system, delivering zero damage to corrugated board strength while achieving superior feeding precision and smoother operation. The servo-driven mechanism ensures consistent, vibration-free feeding at all production speeds.
| Transport System | Vacuum suction board transport with ceramic-coated feed rollers for extended wear resistance |
| Quick Changeover | Quick plate mounting mechanism with automatic ink washing system for rapid job changes |
| Blade Box Material | Non-metallic special composite material, rust-free for life |
| Optional | Small infrared drying unit for automatic ink drying and enhanced print quality |
| Configuration | Single shaft dual blade slotting with internal gear box height adjustment to prevent oil contamination |
| Pre-Creasing System | Pre-creasing wheel, creasing wheel, and slotting blade positions all servo-controlled for one-key adjustment |
| Creasing Quality | Dual destruction wheel with large creasing structure; upper wheel wrapped in polyurethane for board protection |
| Optional | Dual shaft dual blade slotting for wider adaptability and adjustable box height |
| Compensation | Independent servo-driven anvil roller compensation (±3mm) maintains consistent speed with main die-cutting unit for precise dimensional accuracy |
| Independent Drive | Unit-level independent servo drive eliminates resonance during full-sheet die cutting, preserving print quality |
| Parameter | Specification |
| Max Feed Size | 900 * 2000 mm |
| Min Feed Size | 300 * 600 mm |
| Skip Feed Size | 1200 * 2000 mm |
| Max Printing Area | 900 * 1960 mm |
| Max Die Cutting Size | 900 * 1960 mm |
| Lead Feeder | Multi-Servo Front Edge, Non-Crush |
| Print Transport | Vacuum Suction, Ceramic Rollers |
| Slotting | Single Shaft Dual Blade |
Contact us today for detailed specifications, pricing, and production line consultation.
