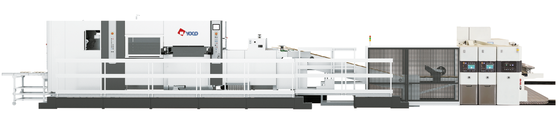

Flexo Box Maker Compatible with Industry Standard Corrugated Board Sizes and Thicknesses for Versatile Packaging Solutions

In the competitive landscape of the European and Latin American packaging markets, efficiency isn't just an advantage—it’s a necessity. Our Bottom Flexo Flat Die-cutting Box Maker is an industrial-grade, fully automated solution designed to bridge the gap between high-volume output and meticulous printing quality.

By integrating high-definition flexo printing with precision flatbed die-cutting, this machine allows converters to produce complex, retail-ready packaging in a single pass.

Engineered for durability and precision, the YL-1224 Model is the backbone of modern box-making facilities.

• Voltage Requirement: 380V/50HZ (Industrial Standard)

• Air Pressure: 6Mpa

• Speed Efficiency: Up to 7500 sheets/hour (Transfer limit)

The system is designed so that the printing machine is connected directly with the Die-Cutter. This eliminates manual handling between processes, significantly reducing labor costs and minimizing the risk of board damage. The automated transfer system ensures that freshly printed corrugated sheets are fed into the die-cutter with perfect timing.

Our Easy Feeder system is the perfect compromise between manual operation and full automation.

• Optimized for Short Runs: Specifically designed for European and Latin American plants that handle frequent job changes.

• Superior Accessibility: Operators can easily access the stack to remove waste or check quality without stopping the entire line.

• Telescopic Conveyor: The length-adjustable telescopic feeding belt adapts to varying sheet sizes instantly, ensuring smooth shingled stream feeding into the flatbed die-cutter.

Quality is in the details. We utilize a sophisticated ink transfer system:

• Lead Edge Suction Feeder: Ensures accurate registration even for warped boards.

• Dual Roller System: Featuring a combination of Rubber Rollers and Ceramic Mesh Rollers (220 and 230 line groups). This setup guarantees uniform ink distribution, vibrant colors, and sharp text for retail packaging.

Whether you are producing standard RSC boxes or complex die-cut trays, the YL-1224 handles it all:

• R-Shaped & L-Shaped Slotting: Flexible dimensions (up to 130mm and 240mm respectively) to accommodate diverse structural designs.

• High Thickness Tolerance: Capable of processing boards up to 12mm thick, covering everything from fine E-flute to heavy-duty double-wall corrugated.

The European market demands high energy efficiency and minimal waste. Our system’s ±0.3 mm printing precision reduces "make-ready" waste, while the automated shingled feeding ensures the machine runs at peak efficiency, lowering the carbon footprint per box produced.

With the rise of e-commerce and agricultural exports in Latin America (Mexico, Brazil, Chile), there is a massive need for robust packaging. The YL-1224’s ability to handle B, C, and 4B flutes makes it perfect for heavy-duty fruit exports and durable shipping containers.

We understand that downtime is lost revenue. This machine is built for Full Automation, meaning it does not require manual waste stripping between the printer and die-cutter.

• User-Friendly Interface: Multi-language support for global operators.

• Global Voltage Compatibility: Set up for 380V/50HZ with customizable power options to meet regional grid requirements in different countries.

Are you looking to upgrade your corrugated plant? The YL-1224 Bottom Flexo Flat Die-cutting Box Maker is the investment that pays for itself through reduced labor, higher speeds, and unrivaled precision.

Our team of engineers is ready to help you integrate this system into your existing workflow. We provide worldwide shipping, installation, and localized technical support for both European and Latin American clients.

Contact us today to receive:

1. A customized ROI analysis for your plant.

2. Detailed floor plan layouts.

3. A comprehensive video demonstration of the YL-1224 in action.
