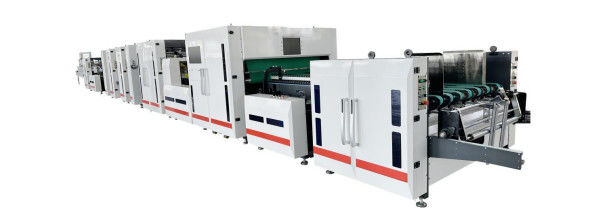

HIGH SPEED FULL AUTOMATIC FOLER GLUER WITH INSPECTION FUNCTION

High Speed Automatic Folder Gluer

Model: JH-1500F-ACJ

Brief Introduction:

JH-1500F-ACJ is a multi-functional model, mainly suitable for medium packaging, double fold, hook bottom of 300g-800g cardboard and 1mm-10mm corrugated packaging;

This machine can also produce the double mount and E, C, B, A, flat mold five layers of corrugated.

This machine is equipped with a special cardboard correction positioner, continuous accumulation box patting device.

Use touch terminal and PLC operating system.

Equipped with remote control operating system, the transmission structure adopts group independent motor transmission, and the upper pressure is pneumatic regulation.

High stability and efficiency, fully meet the needs of humanized operation.

This machine is produced according to European CE standard.



Specification:

Feeding unit:

The feeder is driven by independent motors; 4 sets of air suction devices are used for make sure automatic continuous fast feeding. Moreover, dust removing roller is installed before the correcting part to remove the foreign material and dust which attached on the paper board surface.

The correcting unit:

It is designed as three plates structure, use pusher and side guider to make sure paper board fed smoothly and straightly.

The inspecting unit:

It is equipped with big-power suction blower. It can do comprehensive inspection on paper board through the HD camera. No matter dirty points, color difference, leakage, misprinting, double code, wrong code, coated bubbles, die-cutting offset, overprint offset or other unqualified points, all can be continuously and accurately detected.

The waste ejecting unit:

It can kick out the nonconforming products effectively.

Bottom crush lock unit:

The bottom crush locking unit is three plates structure, the top pressing belt can lift/down pneumatically to match different paper board thickness.

And bottom crush lock module, double-side adhesive sticking module and steering function can be added to ensures fast easy operation and smooth board transmitting.

The folding unit:

The left and right guiding wheels could be adjusted according to actual box conditions to ensure perfect folding;

The long belt is driven independently and its speed can be adjusted independently, and the special pressing device is added to ensure the accuracy of the box folding forming, so that there will be no fishtail.

The ejecting unit:

It is equipped with box blocking device to correct the errors generated in the folding process. In the production of bottom crush locking box, the pneumatic front blocking device is equipped, and the continuous automatic box stacking function ensures that the boxes enter the conveying part neatly.

The conveying unit:

It adopts separate top and bottom driving structure, top pressing belt moves forward and backward base on box length. And with soft belt, this unit won’t damage the boxes’ surface.

Conveying unit speed can be adjusted according to main motor speed automatically with help of sensors. And the speed also can be controlled by hand.

High-speed automatic folder gluer inspector could help customer make perfect high-end products without defects.
