Product Details:
|
| Voltage: | 220V Or 380V Or 415V | Color: | Customized |
|---|---|---|---|
| Max. Machine Speed: | 180 Sheet/min | Max. Sheet Size: | 2600x5200mm |
| Min. Sheet Size: | 700x1000mm (single Pcs Box) | Max. Printing Area: | 2500x5100mm |
| Sheet Thickness: | 2-15mm | Color Quantity: | 1-4 |
| Highlight: | Customized Flexo Printer Slotter Die Cutter,Flexo Printer Slotter Die Cutter 180 Sheet/Min |
||

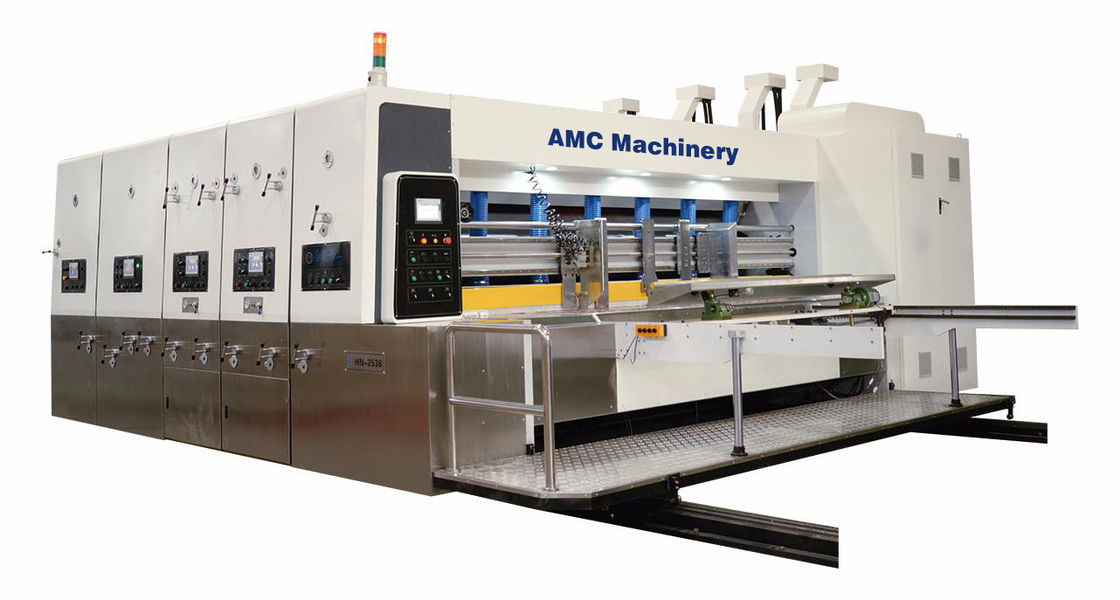

Flexo Printer Slotter Die Cutter
Model: SYKM-H-2652HN
Main functions and characteristics:
Machine
Control System
Treatment
Transmitting
Lubrication
Specification:
| Model | SYKM-H-2652HN |
| Machine size | |
| Internal width of wall body | 5500mm |
| Printing cylinder effect width | 5100mm |
| Wall body thickness | 60mm |
| Feeder specification | |
| Max. machine speed | 180 sheet/min |
| Suitable working speed | 100-150 sheet/min |
| Feeding accuracy | ±1mm |
| Top feeding roller specification | ￠175mm, thickness 25mm |
| Bottom feeding roller specification | ￠240mm, thickness 25mm |
| Printer specification | |
| Max. sheet size | 2600x5200mm |
| Min. sheet size | 700x1000mm (single pcs box) |
| Max. printing area | 2500x5100mm |
| Sheet thickness | 2-15mm |
| Printing die thickness | 7.2mm |
| Two colors printing accuracy | ±0.5mm |
| Three/four colors printing accuracy | ±0.65mm |
| Printing cylinder diameter | ￠900mm (include printing die) |
| Printing pressing roll specification | ￠240mm, thickness 30mm |
| Rubber roller specification | ￠275mm, thickness 35mm |
| Anilox roller specification | ￠285mm, thickness 35mm |
| Slotter specification | |
| Slotting blade thickness | 8mm |
| Min. slotting space | 360x100x360x100mm or 190x190x190x190mm |
| Max. flap cutting width | 50mm |
| Max. Slotting depth | 710mm |
| Slotting accuracy | +/-1mm |
| Creasing roller specification | ￠215mm, thickness 35mm |
| Die cutter specification | |
| Die cutting accuracy | +/-1mm |
| Anvil cover cylinder specification | ￠643.9mm, thickness 45mm |
| Die cylinder specification | ￠850mm, thickness 45mm |
Details of each unit
| Feeding unit |
 |
|
Lead edge feeder Vacuum suction, suction force is divisional control Front stopper manual regulating Left/right side stopper electric regulating Rear stopper electric control moving and manual control holder lift/down With skip feeding function
Feeding roller Top roller is wrapped nitrile rubber Bottom roller surface is with embossing and coated hard chromium Feeding roller gap can be adjusted from 0-15mm Adopt universal coupling to supply transmitting power to feeding roller
Units open/close and moving Moving shaft equipped with friction clutch Main motor start protection device can make sure main motor won’t start before all units not locked Zero reset function can save sheets when order changed |
| Printing unit |
|
|
Printing cylinder Surface ground and coated hard chromium Done balance test Printing die locking device is equipped Printing die hanging groove is suitable for 9mm Sterio Locking Strip Foot switch is used to control printing cylinder moving clockwise or anti-clockwise for easy printing die mounting
Printing pressing roller Surface ground and coated hard chromium Done balance test Pressing roller gap can be adjusted from 0-15mm
Anilox roller Metal anilox roller and ceramic anilox roller are for choice. When LPI over 250, need to choose ceramic anilox roller Anilox roller gap can be adjusted from 0-8mm
Rubber roller The rubber roller is used for ink mixing. Wrapped nitrile rubber. Shore hardness over 60 Rubber middle is parabola profile. This type design can make sure perfect ink transfer
When main motor stop, there is an independent motor to drive the rubber roller. This can make rubber roller keep running for continuous ink mixing. Rubber roller gap can be adjusted from 0-8mm
Registration regulating Planetary gear structure Registration regulating in 360 degree, computer control Printing cylinder axial moving in ±5mm range Zero reset function can save sheets when order changed
Sheet transmitting roller Both top and bottom sheet transmitting roller are coated hard chromium Sheet transmitting roller gap can be adjusted from 0-15mm
Ink cycle system Diaphram pump is used for ink cycling Ink suction nozzle is equipped filter mesh, can filter out impurities Equip ink lacking alarm device. When ink is lacking, the alarm device will ring
Printing registration fixing device Adopt pneumatic brake. When units open, the brake will fix the gear position to keep the printing registration not change |
| Slotting unit |
|
|
Structure Slotting unit include pre-creasing rollers, final creasing rollers, slotting blade rollers Top and bottom creasing wheel roller diameter is 285mm Creasing roller gap can be adjusted from 0-12mm Top slotting shaft diameter is 240mm, thickness is 30mm Bottom slotting shaft diameter is 240mm, thickness is 30mm
Regulating Box height electric regulating, PLC control Slotting registration electric regulating, PLC control Slotting blade position electric regulating,, PLC control
Slotting Adopt 4 slotting blades and 1 big trimming blad 10 ballscrews are used for blades position regulating Linear guideway is used for accuracy positioning Coupler is used to connect top and bottom slotting blade base, this can make sure high accuracy regulating of each blade position. Slotting plate diameter is 800mm Slotting plate base is cross type. This special type can make minimum slotting size is 360x100x360x100mm or 190x190x190x190mm |
| Die cutting unit |
|
|
Anvil cover cylinder Lateral shifting range is 30mm Anvil cover surface ground and coated hard chromium Anvil cover cylinder gap can be adjusted from 0-12mm Anvil cover cylinder speed difference compensation structure will help to keep same linear speed as the die cutting cylinder Equip anvil cover repair blade
Die cylinder Die cylinder surface ground and coated hard chromium Done dynamic balance test Die fixing hole distance is 100mm in lateral direction and there are 12 holes with equal distance on perimeter of the die cylinder. Hole diameter is 10mm
Rotary die Creasing blade height is 22.6mm Wooden die thickness is 13mm Die cutting blade height is 25.4mm
Slotting attachment (optional part) Slotting blade width is 8mm Box height adjusted synchronously by hand
Die cutting registration Planetary gear structure Registration regulating in 360 degree, computer control Die cylinder lateral regulating range is ±5mm, regulated by motor
Sheet transmitting roller Both top and bottom sheet transmitting roller are coated hard chromium Sheet transmitting roller gap can be adjusted from 0-18mm
Independent transmitting servo motor (Optional configuration) An independent servo motor is used for providing power to die cutting unit. In such case, there is no transmitting gear on die cutting unit and won’t transfer the vibration of the die cutting unit to printing unit. This could help to keep high printing accuracy. |
| Auto stacker |
|
|
Sheet collecting arm Manual / Auto model both available Sheet collecting arm transmitting belt tension can be adjusted separately Stacking speed is adjustable
Platform lift/down Strong chain transmitting Stacking height is 1600mm Platform lift/down driving motor is with brake
Sheet collecting stopper Pneumatic control sheet collecting plate. When sheet stacking reach to selected height, the sheet collect plate will reach out to collect sheets Rear stopper position adjusted by hand Pucker transmitting belt is adopted for transmitting sheets |
