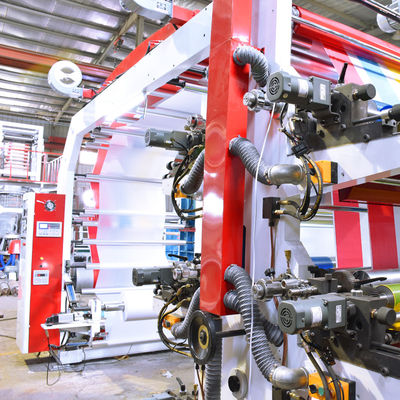

10 - 80m/min Flexo Printing Equipment 23KW 8 Color Flexo Printing Machine

Flexography Printing Machine

Model:YTH-600-8C

Characteristics:

• Printing die material is Photosensitive resin soft plate. Suitable for printing on PE, PP, glass paper, kraft paper, food paper, Non Woven Fabric, etc....
• Meter counter is equipped;
• When printing die lift, anilox roller running automatically;
• Drying system will cut off when machine stop;
• Electric registration regulated by motor;
• The roller seat and material shelf are equipped with jog function and stop button to facilitate the machine control when locking up plates.

Specification:

Optional part:

1) Automatic loading and unloading drvice with Magnetic powder brake
When material weight is around 1000KG and people cannot hold it, need to consider use the Automatic loading and unloading drvice
This magnetic powder brake can help to get better rewinding tension.

2) Magnetic powder brake
This magnetic powder brake can help to get better rewinding tension.

3) Edge guiding device (Rectifying device)
This device can help getting perfect rewinding and keep good rewinding tension.
Usually, edge guiding device will work together with Automatic loading and unloading drvice with Magnetic powder brake.

4) Slitting blade with waste edge suction blower
With this device, customer can do slitting and rewinding in the same time.
Two Air expanding shaft will be equipped for unwinding and rewinding
Mininum slitting width: 100mm
