Product Details:
|
| Power Supply: | 380V Or 220V Or 415V | Color: | Customized |
|---|---|---|---|
| Color Quantity: | 2 Colors | Max. Material Roller Width: | 600mm |
| Printing Length: | 191-714mm | Max. Printing Width: | 560mm |
| Printing Speed: | 10-50m/min | Printing Accuracy: | +/-1.5mm |
| High Light: | 50m/Min Two Color Flexo Printing Machine,10m/Min Two Color Flexo Printing Machine |
||

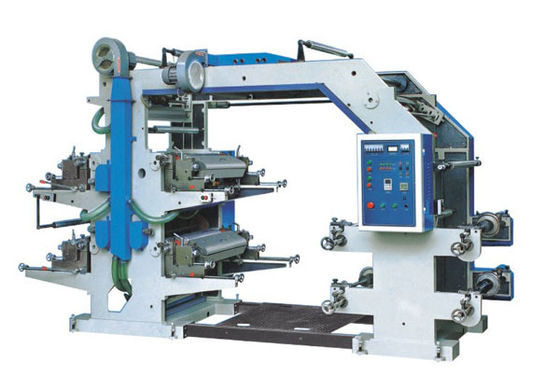

Flexography Printing Machine
Model:YT-600-2C
Characteristics:
Specification:
| Available color quantity | 2 colors |
| Max. material roller width | 600mm |
| Max. material roller weight | 250KG |
| Max. printing width | 560mm |
| Printing length | 191-714mm |
| Design speed | 80m/min |
| Printing speed | 10-50m/min |
| Printing die thickness | 2.28mm |
| Printing accuracy | +/-1.5mm |
| Unwinding diameter |
450mm (if need bigger rewinding diameter, please tell us for re-quoting) |
| Rewinding diameter |
450mm (if need bigger rewinding diameter, please tell us for re-quoting) |
| Reel core diameter | 3" |
| Printing pressure regulation | Manual adjustment |
| Total power | 21KW |
| Machine weight | 3000KG |
| Machine dimension | 4200x1800x2300mm |
Optional part:
1) Automatic loading and unloading drvice with Magnetic powder brake
When material weight is around 1000KG and people cannot hold it, need to consider use the Automatic loading and unloading drvice
2) Magnetic powder brake
This magnetic powder brake can help to get better rewinding tension.
3) Edge guiding device (Rectifying device)
This device can help getting perfect rewinding and keep good rewinding tension.
Usually, edge guiding device will work together with Automatic loading and unloading drvice with Magnetic powder brake.
4) Slitting blade with waste edge suction blower
With this device, customer can do slitting and rewinding in the same time.
