Shaftless Hydraulic Paper Edge Protector Machine / Paper Slitter Rewinder Machine

Large Image : Shaftless Hydraulic Paper Edge Protector Machine / Paper Slitter Rewinder Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	AMC MACHINERY
Certification:	CE
Model Number:	ZFQ-2500D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate
Packaging Details:	Corrugated box and plastic film
Delivery Time:	60 working days
Payment Terms:	T/T
Supply Ability:	5 sets per month

Contact Now

Shaftless Hydraulic Paper Edge Protector Machine / Paper Slitter Rewinder Machine

Description

Voltage:	220V Or 380V Or 415V	Color:	Customized
Speed:	0-200m/min	Max. Width Of Slitting Jumbo Roll:	2500mm
Min Width Of Slitting Jumbo Roll:	1100mm	Max. Diameter Of Slitting Jumbo Roll:	Ф1800mm
Shaftless Type:	Hydraulic
High Light:	Hydraulic Paper Edge Protector Machine , Shaftless Paper Edge Protector Machine , Hydraulic Paper Slitter Rewinder Machine

Paper Slitter Rewinder Machine

Model: ZFQ-2500D

Brief Introduction:

The paper slitting machine is an important equipment for slitting jumbo paper roll into small paper rolls with required width.
It can work together with edge board forming machine, paper tube machine.

Characteristics:

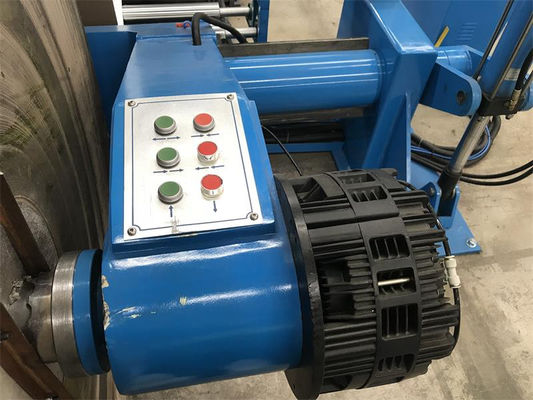

Shaftless type hydraulic stand.
Electric control for hydraulic stand up/down and left/right moving.
Floating type tension control system can keep tension fixed.

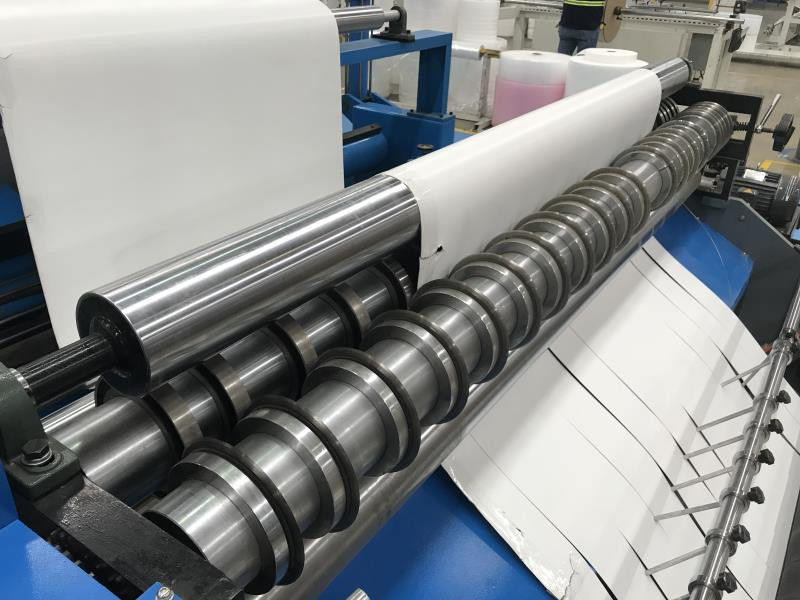

Heavy duty slitting part for good slitting quality.
Frequency converter for controlling driving chain with low noise.
Keep 1-2mm distance between every two neighboring small paper reels.
Single ground roller type rewinding part. It is with low center of gravity and is easy for unloading paper reels after rewinding.
Different machine width could be customized.

Specification:

Model	ZFQ-2500D
Working speed	0-200m/min
Max. width of jumbo roll	2500mm
Min width of jumbo roll	1100mm
Max. diameter of jumbo roll	Ф1800mm
Max. weight of jumbo roll	2800KG
Suitable material	Writing & printing paper Duplex (coated white top testliner) 1/S coated (FBB) Kraft/Brown paper
Paper grammage	80gsm-600gsm
Core diameter of raw paper roll	3"(76mm) - 12”(304mm)
Rewind paper roll width	Min. 40mm Max. 2500mm
Rewind paper roll diameter	Max.1500mm
Quantity of slitting blade	25 pcs
Power supply	19KW,380V, 50HZ/60HZ, 38A 19KW,220V, 50HZ/60HZ, 76A 19KW,440V, 50HZ/60HZ, 38A
Working temperature	0-50℃
Working humidity	≦70%
Dimension	5600×4500×1600mm
Working area	8500x5500x1600mm
Weight	5500kg
Operator	1
Paper stand	Shaftless type hydraulic stand
