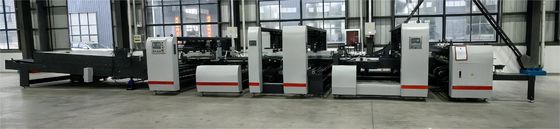

Corrugated Box Folder Gluer Machine Full Automatic Case Gluing Machine 45KW JH-2800F-P

Full Automatic Double-splicing Box (Case) Gluing Machine

Model: JH-2800F-P

Features:

• Modular structure design which is easy for adjustment Machine function upgrade is available based on customer request.
• Humanized design of accessories installation, simple and easy to operate.
• Machine drive is controlled by independent motor.
• Whole machine can be adjusted by one hexagonal wrench.
• Special sheet correction device ensures accuracy sheet feeding.
• Trombone(pressing) unit equipped with correction and alignment device,which improves gluing effect.
• Strengthened and widen belts which is suitable for corrugated box.
• Collection unit adopts cylinder pressure system, which helps to adjust pressure and ensures product gluing effect.
• Machine guide plate equipped with electric movement system which is easy for adjustment.
• Touch screen control panel.
• Upper and lower plate adopts linear guiding system, which ensures mechanical accuracy of movement.
• The remote controller makes machine operation more convenient.

Specifications:

Technical Parameters of Box Making:

Basic type	Model	JH-2800F-P
	Parameter	Max	Min
	A		100
	B	1000	240
	C	60	30
	D	1100
	E	1000	420
	F	2740
	G		520
	H		520

Details of each section:

(1)FEEDER

Dual servo synchronous paper feeding system with vacuum suction tape, ensuring accurate and stable paper feeding.

(2)SPLICING COMPONENT

Four sets of cylinder paper-stopper positioning system, ensuring the high bottom line precision of the carton. Two sets of pneumatic side positioning system at the left and right side, ensuring the precision at the joint of the carton. Dynamic feeding splicing of two pieces under the control of PLC and machine interface, ensuring the precision of splicing.

(3)FOLDING UNIT

A pair of servo motors at the left and right side simulating the manual dynamic folding, with push-back servo motor to prevent high-low lines and scissors crossing in the rebounding process of paper after the formation, so as to reduce the defective products to a great extent.

(4)TROMBONE (PRESSING) UNIT

Adjustable upper and lower belts, works together with correction device and jamming detecting device.

(5)CONVEYING UNIT

Correction positioning before conveying unit, helps to avoid from improper gluing.
