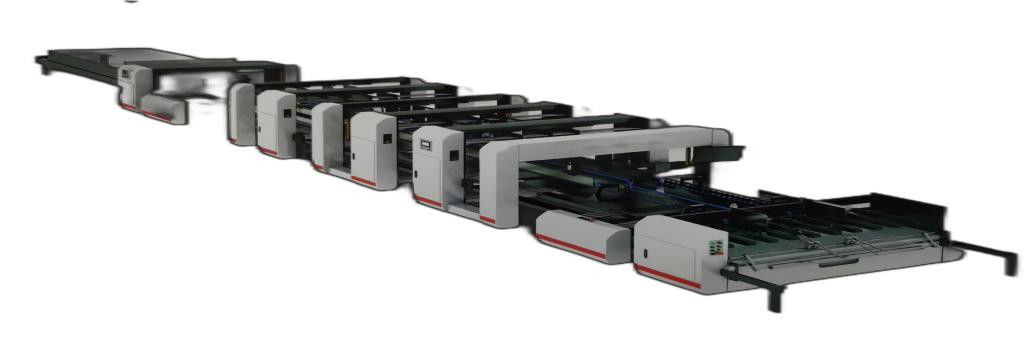

Fully Automatic Folder Gluer Machine 42KW High Speed Folding And Gluing Machine

HIGH-SPEED AUTOMATIC FOLDER GLUER

Model: JH-1500F-PC

Features:

• Modular structure design which is easy for adjustment. Machine function upgrade is available based on customer request
• Machine drive is controlled by independent motor
• Special sheet correction device ensures accuracy sheet feeding
• Strengthened and widen belts which is suitable for corrugated box
• Machine guide plate equipped with electric movement system which is easy for adjustment
• Upper and lower plate adopts linear guiding system, which ensures mechanical accuracy of movement
• Humanized design of accessories installation, simple and easy to operate
• Whole machine can be adjusted by one hexagonal wrench
• Trombone (pressing)unit equipped with correction and alignment device,which improves gluing effect
• Collection unit adopts cylinder pressure system, which helps to adjust pressure and ensures product gluing effect.
• User friendly touch screen control panel
• The remote controller makes machine operatiormore convenient

Specifications:

Technical Parameters of Box Making:

Details of each part:

(1)Feeding unit

Sheet feeding is driven byindependent motor. Thevacuum suction belt ensuresthe accuracy and stability ofsheet conveying.

(2)Sheet correction unit

Auto-correction unit ensures feeding accuracy Adjustable upper pressing driveis suitable for different thickness sheet.

(3)Bottom lock and 4/6 corner system

Specially designed 4/6 corner system, whichis driven by high-precision servo controlsystem. Thus realizes special folding functions such as bottom, front lock and 4/6corner, which can meet the functions of va-rious covers and 4/ 6 comner boxes.

(4)Folding unit

Unique elongated folding module enablesthe cardboard to be stretched into shape.Thespeed of the left and right conveyor belts canbe adjusted separately, which ensuresstraight conveying by correcting the box.

(5)Trombone(pressing) unit

Adjustable upper and lower belts,works together with correction deviceand iamming detecting device.

(6)Conveying unit

Correction positioning beforeconveying unit, helps to avoid from improper gluing.
