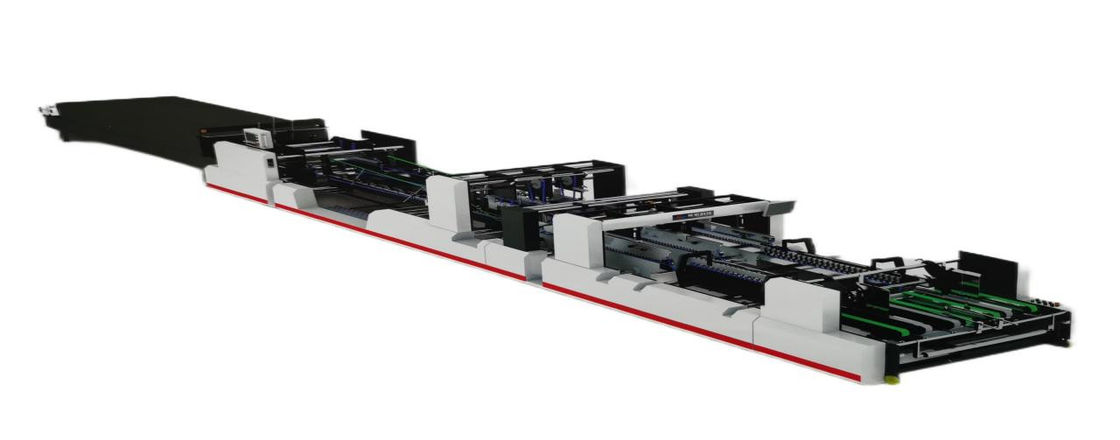

High Speed 200M/min Folder And Gluer Machine Full Automatic JH-1450AC

I'm Online Chat Now

High Speed 200M/min Folder And Gluer Machine Full Automatic JH-1450AC

High Speed 200M/min Folder And Gluer Machine Full Automatic JH-1450AC
High Speed 200M/min Folder And Gluer Machine Full Automatic JH-1450AC

Large Image :  High Speed 200M/min Folder And Gluer Machine Full Automatic JH-1450AC

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: JH-1450AC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

High Speed 200M/min Folder And Gluer Machine Full Automatic JH-1450AC

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Max. Sheet Size: 1450x900mm Min. Sheet Size: 420x180mm
Applicable Paper: Cardboard:300g-800g, Corrugated Paper F, E, C, B, A, (choose Small Box,can Do240*120mm) Speed: 0-200m/min
High Light:

200M/min Folder And Gluer Machine

,

Folder And Gluer Machine Full Automatic

High-Speed Automatic Folder Gluer

Model: JH-1450AC





Features :

  • Modular structure design which is easy for adjustment. Machine function upgrade is available based on customer request
  • Special sheet correction device ensures accuracy sheet feeding
  • Machine guide plate equipped with electric movement system which is easy for adjustment
  • Humanized design of accessories installation, simple and easy to operate
  • Trombone (pressing)unit equipped with correction and alignment device,which improves gluing effect
  • User friendly touch screen control panel
  • Machine drive is controlled by independent motor
  • Strengthened and widen belts which is suitable for corrugated box
  • Upper and lower plate adopts linear guiding system, which ensures mechanical accuracy of movement
  • Whole machine can be adjusted by one hexagonal wrench
  • The remote controller makes machine operatiormore convenient



Specifications:

Model JH-1450AC
MAX. SHEET SIZE 1450*900mm
MIN. SHEET SIZE 420*180mm
APPLICABLE PAPER cardboard:300g-800g, corrugated paper F, E, C, B, A, (choose small box,can do240*120mm)
SPEED 0-200M/min
MACHINE DIMENSION 17400*2050*1480mm
TOAI POWER 35KW
MAX.AIR DISPLACEMENT 1.7m³/min
TOTAI WEIGHT 9000kg





Details of each section:



(1)Feeding unit

Sheet feeding is driven byindependent motor. Thevacuum suction belt ensuresthe accuracy and stability ofsheet conveying.



(2)Sheet correction unit

Auto-correction unit ensures feeding accuracy Adjustable upper pressing driveis suitable for different thickness sheet.



(3)Bottom lock and 4/6 corner system

Specially designed 4/6 corner system, whichis driven by high-precision servo controlsystem. Thus realizes special folding functions such as bottom, front lock and 4/6corner, which can meet the functions of va-rious covers and 4/ 6 comner boxes.



(4)Folding unit

Unique elongated folding module enablesthe cardboard to be stretched into shape.Thespeed of the left and right conveyor belts canbe adjusted separately, which ensuresstraight conveying by correcting the box.



(5)Trombone(pressing) unit

Adjustable upper and lower belts,works together with correction deviceand iamming detecting device.



(6)Conveying unit

Correction positioning beforeconveying unit, helps to avoid from improper gluing.





Technical Parameters of Box Making:

Basic type

Model JH-1450AC
Parameter Max Min

1.Straight line box

High Speed 200M/min Folder And Gluer Machine Full Automatic JH-1450AC 0

A 1400 420
B 900 150
C   185
D   50

2.Crash lock bottom box

High Speed 200M/min Folder And Gluer Machine Full Automatic JH-1450AC 1

A 1400 420
B   185
C 540 100
D 200 35
E   50

3.Four corner box

High Speed 200M/min Folder And Gluer Machine Full Automatic JH-1450AC 2

A 1200 260
B 1140 200
C 200 30
D 1000
E   100

4.Six corner box

High Speed 200M/min Folder And Gluer Machine Full Automatic JH-1450AC 3

A 1200
B 800
C   100
D 500
E 200 35
5.Box without cover A 1380 420
B 900 180
C   185
D   50
