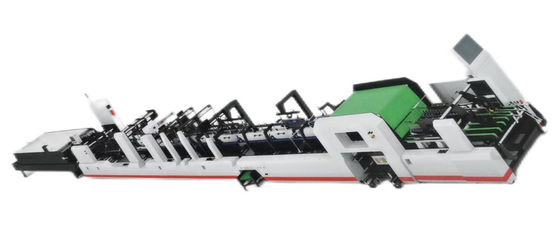

JH-1100PC-J Folder Gluer Machine 0-500m/Min 33.5KW Touch Screen Control Plane

I'm Online Chat Now

JH-1100PC-J Folder Gluer Machine 0-500m/Min 33.5KW Touch Screen Control Plane

JH-1100PC-J Folder Gluer Machine 0-500m/Min 33.5KW Touch Screen Control Plane
JH-1100PC-J Folder Gluer Machine 0-500m/Min 33.5KW Touch Screen Control Plane

Large Image :  JH-1100PC-J Folder Gluer Machine 0-500m/Min 33.5KW Touch Screen Control Plane

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: JH-1100PC-J
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

JH-1100PC-J Folder Gluer Machine 0-500m/Min 33.5KW Touch Screen Control Plane

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Max. Sheet Size: 1100x900mm Min. Sheet Size: 130x70mm
Applicable Paper: Cardboard: 250-800gsm, Corrugated Sheet F/E Flute Speed: 0-500m/min
High Light:

Folder Gluer Machine 500m/min

,

Folder Gluer Machine 33.5KW

High Speed Automatic Folder Gluer

Model: JH-1100PC-J



Features of JH series:

  • Modular structure design, which is easy for adjustment. Machine function upgrade is available based on customer request.
  • Humanized design of accessories installation, simple and easy to operate.
  • Special sheet correction device ensures accuracy sheet feeding.
  • Specific design ensures 180 degree on 1st crease and 3rd crease which makes the box easier to be extended.
  • Segmental crash lock bottom device.
  • Touch screen control plane.
  • High speed electric kick board counter.
  • Collection unit adopts cylinder pressure system, which helps to adjust pressure and ensures product gluing effect.
  • Remote control convenience for operators to remote control the start and stop of machine.
  • Equipped with printing inspection unit, bar-code inspection unit and gluing inspection unit.
  • Intelligent one button modeling system, superior to general visual inspection. adopts imported components and high-tech image processing system to achieve automatic feeding, inspection, Finished / waste classification, product quality analysis, etc.






Specifications:

Model JH-1100PC-J
MAX. SHEET SIZE 1100*900mm
MIN. SHEET SIZE 130X70mm
APPLICABLE PAPER cardboard:250g-800g, corrugated paper F, E
SPEED 0-500M/min
MACHINE LENGTH 19600mm
MACHINE WIDTH 1800mm
MACHINE HEIGHT 1450mm
TOAI POWER 33.5KW
MAX.AIR DISPLACEMENT 1m³/min
TOTAI WEIGHT 8500kg



Details of each section:

(1)FEEDING UNIT

Sheet feeding is driven by independent motor. The vibration belt and vacuum suction belt ensure the accuracy and stability of sheet conveying.



(2)SHEET CORRECTION UNIT

Auto-correction unit ensures feeding accuracy. Adjustable upper pressing drive is suitable for different thickness sheet.



(3)INSPECTION UNIT

Equipped with strong suction device to ensure accurate detection of paper.



(4)WASTE REJECTION UNIT

Equipped with high precision sensor to kick out waste products accurately.



(5)PRE-FOLDING SECTION

Specific design ensures 180 degree on 1st crease and 165 degree on 3rd crease which makes the box easier to be extended.



(6)BOTTOM FOLDING

Equipped with bottom lock combination/adjustment,with ideally flexible design that ensures fast and easy operation.

Sectional belt feeder with special design, flexible and adjustable per product requirement without tightening or loosening the belt. Electronic glue sprayer(required)



(7)FOLDING

2nd crease 180 degree, 4th crease 180 degree

Specifically designed to adjust belt feeding speed separately, to correct box embryo running direction and ensure straight feeding.





(8)TROMBONE (PRESSING)

Auto-collecting of paper/sheets and water spray by photoelectric counter.

Paper-jam inspection device Adjustable upper and lower belts for easy and simple operation.



(9)PRESS CONVEY SECTION

Movable stacking belts of 2 boards on left and right, adjustable in on-line production per stacking requirement of the boxes to improve efficiency. Special and extra sponge belts for pressing of concave part the boxes piles.



Box display:

JH-1100PC-J Folder Gluer Machine 0-500m/Min 33.5KW Touch Screen Control Plane 0           JH-1100PC-J Folder Gluer Machine 0-500m/Min 33.5KW Touch Screen Control Plane 1

JH-1100PC-J Folder Gluer Machine 0-500m/Min 33.5KW Touch Screen Control Plane 2      JH-1100PC-J Folder Gluer Machine 0-500m/Min 33.5KW Touch Screen Control Plane 3      JH-1100PC-J Folder Gluer Machine 0-500m/Min 33.5KW Touch Screen Control Plane 4
