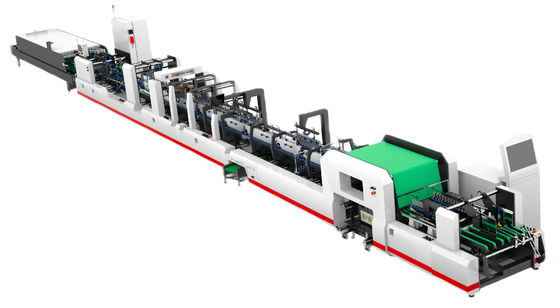

High Speed Full Automatic Folder Gluer Machine 18.5KW 0 - 500m/min JH-850PC

I'm Online Chat Now

High Speed Full Automatic Folder Gluer Machine 18.5KW 0 - 500m/min JH-850PC

High Speed Full Automatic Folder Gluer Machine 18.5KW 0 - 500m/min JH-850PC
High Speed Full Automatic Folder Gluer Machine 18.5KW 0 - 500m/min JH-850PC

Large Image :  High Speed Full Automatic Folder Gluer Machine 18.5KW 0 - 500m/min JH-850PC

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: JH-850PC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

High Speed Full Automatic Folder Gluer Machine 18.5KW 0 - 500m/min JH-850PC

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Max. Sheet Size: 850x900mm Min. Sheet Size: 125x70mm
Applicable Paper: Cardboard: 250-800gsm, Corrugated Sheet F/E Flute Speed: 0-500m/min
High Light:

Full Automatic Folder Gluer Machine

,

Folder Gluer Machine 500m/min

,

High Speed Folder Gluer 18.5KW

High Speed Automatic Folder Gluer

Model: JH-850PC



Features of JH series:

  • Modularization structure design, can upgrade machine function according to customer's requirements.
  • Humanized design attachment installation easy and fast to operate.
  • Special equipped with paper regulation device.
  • Special first folding line, third folding line pre-fold 180°.
  • Segmental crash lock bottom device.
  • Touch screen control plane.
  • High speed electric kick board counter.
  • Collecting unit cylinder control pressure type pressure system.
  • Remote control convenience for operators to remote control the start and stop of machine.
  • Optional printing,bar code and glue inspection unit.




Specifications:

Model JH-850PC
MAX. SHEET SIZE 850*900mm
MIN. SHEET SIZE 125X70mm
APPLICABLE PAPER cardboard:250g-800g, corrugated paper F, E
SPEED 0-500M/min
MACHINE LENGTH 16600mm
MACHINE WIDTH 1500mm
MACHINE HEIGHT 1450mm
TOAI POWER 18.5KW
MAX.AIR DISPLACEMENT 0.7m³/min
TOTAI WEIGHT 6000kg





Technical Parameters of Box Making:

Basic type

Model JH-850PC
Parameter Max Min

1.Straight line box

High Speed Full Automatic Folder Gluer Machine 18.5KW 0 - 500m/min JH-850PC 0

A 800 160
B 900 75
C 420 75
D 100 10

2.Crash lock bottom box

High Speed Full Automatic Folder Gluer Machine 18.5KW 0 - 500m/min JH-850PC 1

A 800 160
B 420 75
C 650 60
D 150 25
E 100 25

3.Four corner box

High Speed Full Automatic Folder Gluer Machine 18.5KW 0 - 500m/min JH-850PC 2

A 700 160
B   100
C   30
D 600
E   100

4.Six corner box

High Speed Full Automatic Folder Gluer Machine 18.5KW 0 - 500m/min JH-850PC 3

A 850 290
B 550 180
C   120
D   100
E   30





Details of each section:

(1)FEEDER

·Independent motor driving system Synchronized feeding with main motor

Equipped with vibrating sheet separation system.



(2)PAPER REGULATING DEVICE

·Auto-correction of paper/sheets from the Feeder ensures feeding accuracy.

·Adjustable press drive ft for various thickness of paper/sheets.



(3)PRE-FOLDING

·Specific design ensures 180 degree on 1 st crease and 165 degree on 3rd crease.

4/6 back-hook system can be added as upgrade (optional).



(4)BOTTOM-FOLDING

·Equipped with bottom lock combination/adjustment, with ideally flexible design that ensures fast and easy operation.

·Sectional belt feeder with special design, flexible and adjustable per product requirement without tightening or loosening the belt.

·Electronic glue sprayer (required).



(5)FOLDING

·2nd crease 180 degree, 4th crease 180 degree.

·Specifically designed to adjust belt feeding speed separately to correct box embryo running direction and ensure straight feeding.



(6)TROMBONE (PRESSING)

·Auto-collecting of paper/sheets and water spray by photoelectric counter.

·Paper-jam inspection device.

·Adjustable upper and lower belts for easy and simple operation.



(7)CONVEYOR

·Movable stacking belts of 2 boards on left and right, adjustable on-line per stacking requirement to improve efficiency.

·Extra sponge belt for pressing of concave part the box piles.

·Air-pressed easy adjustment to ensure even pressure of gluing.

·Synchronized in proportion with main motor in automatic mode to improve stable stacking.





Box display:

High Speed Full Automatic Folder Gluer Machine 18.5KW 0 - 500m/min JH-850PC 4           High Speed Full Automatic Folder Gluer Machine 18.5KW 0 - 500m/min JH-850PC 5

High Speed Full Automatic Folder Gluer Machine 18.5KW 0 - 500m/min JH-850PC 6      High Speed Full Automatic Folder Gluer Machine 18.5KW 0 - 500m/min JH-850PC 7      High Speed Full Automatic Folder Gluer Machine 18.5KW 0 - 500m/min JH-850PC 8
