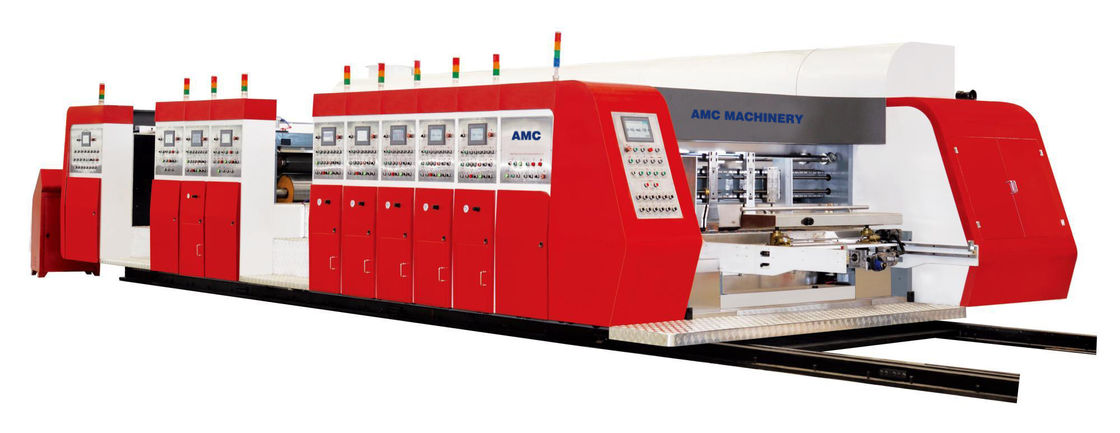

Flexo Printing Slotting Die Cutting Machine PLC Control SYKM-HDF-1224

Flexo Printing Slotting Die Cutting Machine PLC Control SYKM-HDF-1224
Flexo Printing Slotting Die Cutting Machine PLC Control SYKM-HDF-1224

Large Image :  Flexo Printing Slotting Die Cutting Machine PLC Control SYKM-HDF-1224

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: SYKM-HDF-1224
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Plywood box, size 5000x900x2000mm for each unit
Delivery Time: 80 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

Flexo Printing Slotting Die Cutting Machine PLC Control SYKM-HDF-1224

Description
Max. Machine Speed: 280 Sheet/min Feeding Accuracy: ±1mm
Max. Sheet Size Allowed: 1200x2500mm Min. Sheet Size Allowed: 400x800mm
Max. Printing Area Allowed: 1100x2400mm Color Quantity: 1-5
Anilox Roller Type: Ceramic Anilox Roller Voltage: 220V Or 380V Or 415V
Color: Customized
High Light:

Flexo Printing Slotting Die Cutting Machine

,

Printing Slotting Die Cutting Machine PLC Control

Flexo printer die cutter machine

Model: SYKM-HDF-1224

Main functions and characteristics:

Machine

  • Design speed: 280 pcs/min
  • High definition printing speed: 130-180 pcs/min (base paper type)
  • Lead edge feeder
  • Top printing with NEW type Carton Fiber Doctor Blade System
  • Equip four basic color printers (Yellow, Red, Blue, Black) and one special color printer, total five printing units
  • Drying unit is equipped before RDC unit


Control System

  • PLC control, touch screen operating
  • Main motor adopt frequency converter motor. Start/running steady and save energy
  • Blower motor adopt frequency converter motor. Blower force can be adjusted as per sheet size


Treatment

  • Wall body (60mm thickness) and other important parts are done with natural ageing treatment and tempering treatment to release the Metal internal stress
  • All shafts, rollers are ground and done with static/dynamic balance testing. Then coated hard chromium


Transmitting

  • 60mm thickness gear is made with 20CrMnTi material, ground accurately
  • All transmitting part (joint part of shafts, gears) are connected with expansion sleeves. The expansion sleeves can eliminate the connecting part gap, so that machine will be with low noise when running at high speed
  • Main transmitting part use international brand bearings


Lubrication

  • Spray lubricating
  • Gear box is equipped oil balance device. This device can keep each unit with same oil volume


Specification:

ModelSYKM-HDF-1224

Machine size
Internal width of wall body2800mm
Printing cylinder effect width2400mm
Wall body thickness60mm
Feeder specification
Max. machine speed280 sheet/min
Suitable working speed130-180 sheet/min
Feeding accuracy±1mm
Printer specification
Max. sheet size1200x2500mm
Min. sheet size400x8-00mm
Max. printing area1100x2400mm
Sheet thickness3-10mm
Printing die thickness7.2mm
Two colors printing accuracy±0.3mm
Three/four colors printing accuracy±0.5mm
Die cutter specification
Die cutting accuracy+/-1mm
Anvil cover cylinder specification¢389mm, thickness 35mm
Die cylinder specification¢360mm, thickness 45mm
