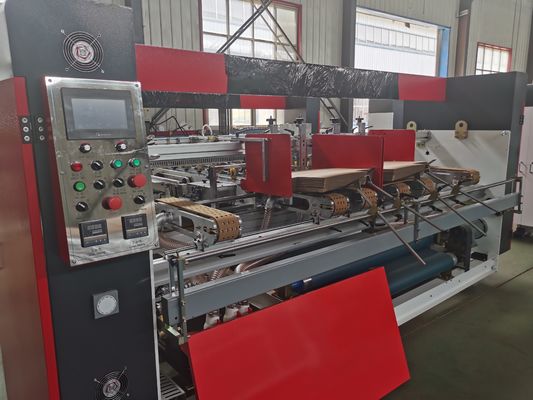

Semi Automatic Carton Folder Gluer Machine 16KW For Two Piece Cardboard MH-3000Z

I'm Online Chat Now

Semi Automatic Carton Folder Gluer Machine 16KW For Two Piece Cardboard MH-3000Z

Semi Automatic Carton Folder Gluer Machine 16KW For Two Piece Cardboard MH-3000Z
Semi Automatic Carton Folder Gluer Machine 16KW For Two Piece Cardboard MH-3000Z

Large Image :  Semi Automatic Carton Folder Gluer Machine 16KW For Two Piece Cardboard MH-3000Z

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: MH-3000Z
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

Semi Automatic Carton Folder Gluer Machine 16KW For Two Piece Cardboard MH-3000Z

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Max. Output Paper Size (Single): 1300*1300mm Min. Feed Size (Single): 650*350mm
Max. Height Of Stack: 400mm Size Model: Different Size Models Can Be Customized According To The Customer Needs
High Light:

Semi Automatic Folder Gluer Machine

,

Carton Folder Gluer Machine

Semi-automatic Folder Gluer

Model: MH-3000Z



Description:

MH-3000Z is for two-pieces cardboard gluing and folding to a cardboard box.



This machine include five units:

1. Feeder

Equipped with 2*3KW horizontal vortex suction pumps, which greatly enhance the intensity of air suction, thereby ensuring the stability of paper transportation.

Feeding by 2*1KW servo motors, the paper feeding length can be adjusted arbitrarily to ensure the accuracy of paper feeding.



2. Gluing unit*2

Gluing part: The middle butt joint part adopts cold glue & hot glue system for integrated fixation. The hot melt glue plays a shaping role and the cold glue plays a bonding role. This design eliminates the phenomenon of glue opening and explosion caused by a single hot-melt adhesive bonding due to seasonal changes, and the hot-melt glue bursting as soon as the finished product box enters the cold storage;



3. Conveying unit

The intermediate transmission system adopts 3KW Zhejiang Mitsubishi reduction motor transmission, and also has electromagnetic clutch and electromagnetic brake as backup transmission;



4. Folding & pressing unit



5. Control system





Technical Parameter:



Model MH-3000Z
Max. Output Paper Size (Single) 1300*1300mm
Min. Feed Size (Single) 650*350mm
Max. Height of Stack 400mm
Total Power rating (KW) 16
Total Weight (Kg) 3300Kg
Dimension (mm) 5250*3600*1450 (without conveyor belt & pressure platform)


Note: 1. The paper feeding direction is reduced by 250mm when the grinding device is installed.

          2. Different size models can be customized according to the customer needs.





Electrical configuration:

PLC control system He Chuan
Frequency Converter Shilin Electric
Power MEAN WELL
Servo Motor Zhongchuang Tianqin
Contactor Schneider
Intermediate Relay IDEC
Operating button Schneider
Optical Switch OMRON
