Product Details:
|
| Voltage: | 220V Or 380V Or 415V | Color: | Customized |
|---|---|---|---|
| Max. Continuous Cutting Speed: | 60 Times/min | Edge Protector Size: | 25-100mm |
| Max. Cutting Thickness: | 20mm | ||
| High Light: | PLC Control Edge Board Re Cutting Machine,Hydraulic Edge Board Re Cutting Machine |
||
RC-100C single cutter edge board re-cutting machine
Hydraulic driving
Characteristics:
Paper protector re-cutter is to re-cut paper edge protector into small pcs.
Feeding is driven by servo motor.
Cutting is controlled by PLC, hydraulic driving.
Specification:
| Model | RC-100C |
| Applicable paper edge size | 25-100mm |
| Max. cutting thickness | 20mm |
| Max. continuous cutting speed | 60 times/min |
| Cutting length | 20-2500mm |
| Cutting accuracy | ±1mm |
| Feeding servo motor power | 0.4KW |
| Hydraulic oil pump power | 1.5KW |
| Dimension | 5500×1000×1400mm |
| Weight | 380KG |

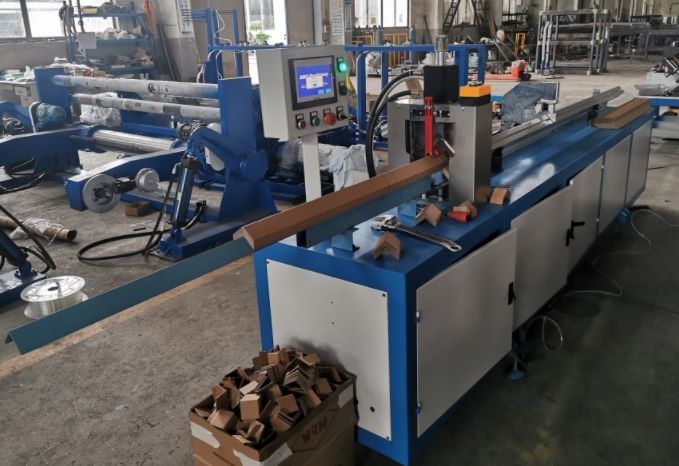

Photos:
