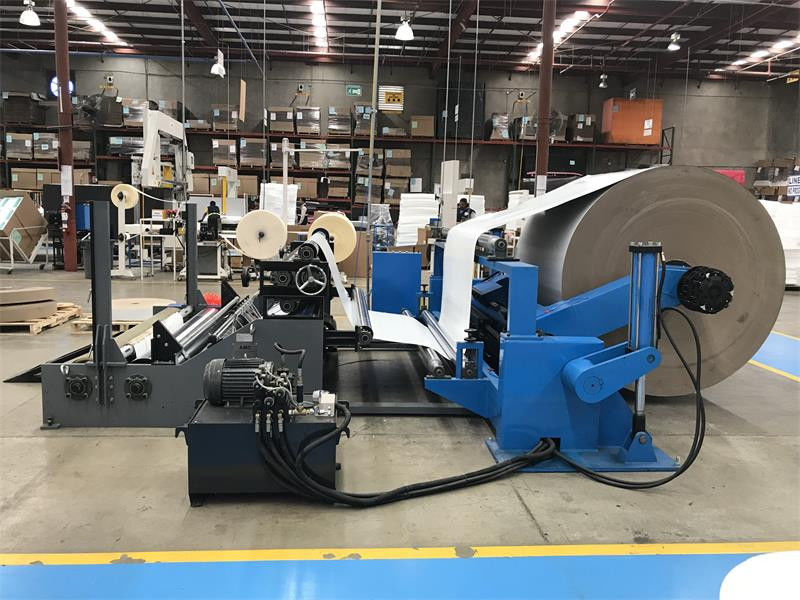

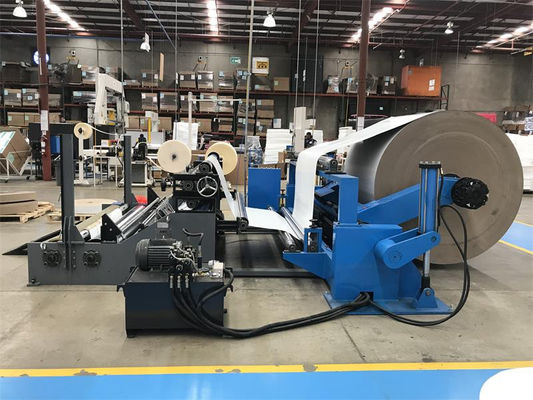

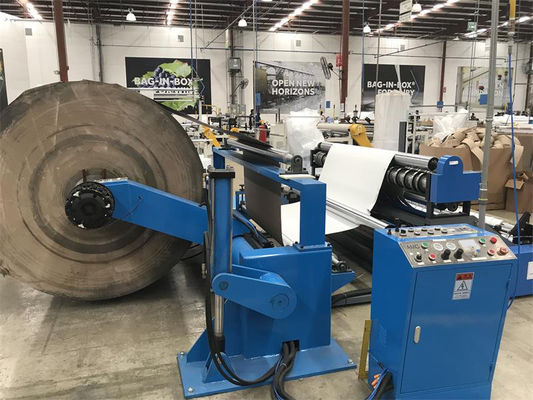

80gsm - 600gsm Paper Slitting Rewinding Machine For Edge Protector Producion

80gsm - 600gsm Paper Slitting Rewinding Machine For Edge Protector Producion
80gsm - 600gsm Paper Slitting Rewinding Machine For Edge Protector Producion 80gsm - 600gsm Paper Slitting Rewinding Machine For Edge Protector Producion

Large Image :  80gsm - 600gsm Paper Slitting Rewinding Machine For Edge Protector Producion

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: ZFQ-2500C plus
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

80gsm - 600gsm Paper Slitting Rewinding Machine For Edge Protector Producion

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Speed: 0-200m/min Shaftless Type: Hydraulic
Max. Width Of Jumbo Roll: 2500mm (98 Inches) Paper Grammage: 80gsm-600gsm
High Light:

80gsm Paper Slitting Rewinding Machine

,

600gsm Paper Slitting Rewinding Machine

Paper Slitter Machine

Model: ZFQ-2500C Plus



Characteristics:

  • Shaftless type hydraulic stand.
  • Electric control for hydraulic stand up/down and left/right moving.
  • Floating type tension control system can keep tension fixed.
  • Heavy duty slitting part for good slitting quality.
  • Frequency converter for controlling driving chain with low noise.
  • Keep 1-2mm distance between every two neighboring small paper reels.
  • Single ground roller type rewinding part. It is with low center of gravity and is easy for unloading paper reels after rewinding.
  • Automatic meter counting
  • CPC control
  • Automatic stop as per signal from meter counter
  • Different machine width could be customized.



Specification:

Model ZFQ-2500C Plus
Working speed 0-200m/min
Max. width of jumbo roll 2500mm (98 inches)
Min width of jumbo roll 1100mm (43 inches)
Max. diameter of jumbo roll Ф1500mm (74 inches)
Max. weight of jumbo roll 2800KG (6000 pounds)
Suitable material

Writing & printing paper

Duplex (coated white top testliner)

1/S coated (FBB)

Kraft/Brown paper

Paper grammage 80gsm-600gsm
Core diameter of raw paper roll 3"(76mm) - 12”(304mm)
Rewind paper roll width

Min. 40mm (1.6 inches)

Max. 2500mm (98 inches)

Rewind paper roll diameter Max.1500mm (60 inches)
Quantity of slitting blade 25 pcs
Power supply

19KW,380V, 50HZ/60HZ, 38A

19KW,220V, 50HZ/60HZ, 76A

19KW,440V, 50HZ/60HZ, 38A

Working temperature 0-50℃
Working humidity ≦70%
Dimension 5600×4500×1600mm
Working area 8500x5500x1600mm
Weight 5500kg
Operator 1
Paper stand Shaftless type hydraulic stand




Other items:

Main bearing HRB brand
Pneumatic part AirTec brand
Hydraulic station Tian Yuan
Air switch Chint
Frequency converter INOVANCE
Contactor Siemens
Time relay Chint
Relay Omron
Indicating light Siemens
Buttons Siemens
