Automatic Counter L Profile Edge Protector Making Machine 15.3KW 40m/min Speed

I'm Online Chat Now

Automatic Counter L Profile Edge Protector Making Machine 15.3KW 40m/min Speed

Automatic Counter L Profile Edge Protector Making Machine 15.3KW 40m/min Speed
Automatic Counter L Profile Edge Protector Making Machine 15.3KW 40m/min Speed Automatic Counter L Profile Edge Protector Making Machine 15.3KW 40m/min Speed Automatic Counter L Profile Edge Protector Making Machine 15.3KW 40m/min Speed

Large Image :  Automatic Counter L Profile Edge Protector Making Machine 15.3KW 40m/min Speed

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: ZHJ-100D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 120 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

Automatic Counter L Profile Edge Protector Making Machine 15.3KW 40m/min Speed

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Speed: Max. 40m/min. L Edge Protector Size: 30-80mm (could Be Symmetrical And Asymmetrical)
L Edge Protector Thickness: 2.5-8mm Control: Automatic
High Light:

L Profile Edge Protector Making Machine

,

Edge Protector Making Machine 40m/Min



Regular Speed Paper Edge Protector Line

Model: ZHJ-100D

Product brief introduction:



1. ZHJ-100D machine include 6 units:
    Paper unwinding stand
    Gluing unit
    Wrapping unit
    Forming unit
    Cutting unit
    Stacker unit



Specification:

Model ZHJ-100D
Max. working speed 40m/min (Min. cutting length: 1000mm)
11m/min (Min. cutting length: 50mm)
Regular working speed 15-30m/min
L edge protector size 30-80mm (could be symmetrical and asymmetrical)
L edge protector thickness 2.5-8mm
Inner paper grammage 420-600g/m2
Surface paper grammage 175-250gsm kraft
Automatic Counter L Profile Edge Protector Making Machine 15.3KW 40m/min Speed 0Core diameter of paper reel 3"(76mm)
Layers 3-12
Paper reel diameter 1300mm as maximum
Machine dimension 34000x1500x2200mm
Machine weight 3800KG
Total power 15.3KW
Compressed air requirement 0.8MPa/0.2m3 (customer provide)





Machine structure, main parts introduction, operation introduction:


1. Machine structure
ZHJ-100D machine include 6 units:
Paper unwinding stand,Gluing unit, Wrapping unit, Forming unit, Cutting unit, Stacker unit
Paper roll pass through above 6 units according to priority, finally cut off at cutting unit.

2. Main unit instroduction

a. Main machine parts
Forming unit and cutting unit is most important two parts.
Use servo motor to drive cutter to keep high cutting accuracy.

b. Safety protection
* When machine running, other people don't get close to the machine and
don't operate the control pannel, except the operator.
* People dont stand in front of the cutting unit when machine running. This is
for preventing edge board hurt people.
* Operator's hand should not get close to the cutter or forming wheels when
machine running or testing the cutter.

Photos:

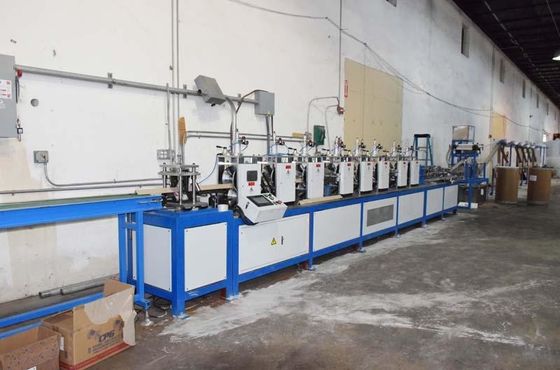

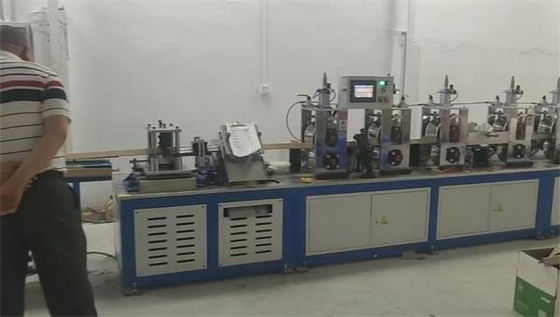

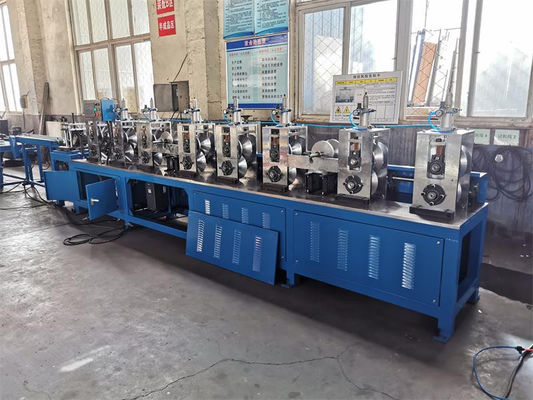

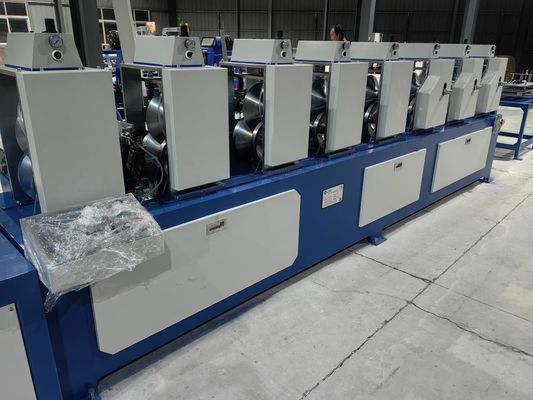

Automatic Counter L Profile Edge Protector Making Machine 15.3KW 40m/min Speed 1
