Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: ZFQ-2000C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

220V 380V 415V Paper Edge Protector Machine 125 - 600gsm Kraft Paper Slitter Rewinder

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Speed: 0-200m/min Max. Width Of Slitting Jumbo Roll: 2000mm
Min Width Of Slitting Jumbo Roll: 900mm Max. Diameter Of Slitting Jumbo Roll: Ф1500mm
Shaftless Type: Hydraulic
High Light:

220V Paper Edge Protector Machine

,

380V Paper Edge Protector Machine

,

600gsm Kraft Paper Slitter Rewinder

Paper Slitter Rewinder Machine

Model: ZFQ-2000C



Brief Introduction:

  • The paper slitting machine is an important equipment for slitting jumbo paper roll into small paper rolls with required width.
  • It can work together with edge board forming machine, paper tube machine.



Characteristics:

  • Shaftless type hydraulic stand.
  • Electric control for hydraulic stand up/down and left/right moving.
  • Floating type tension control system can keep tension fixed.

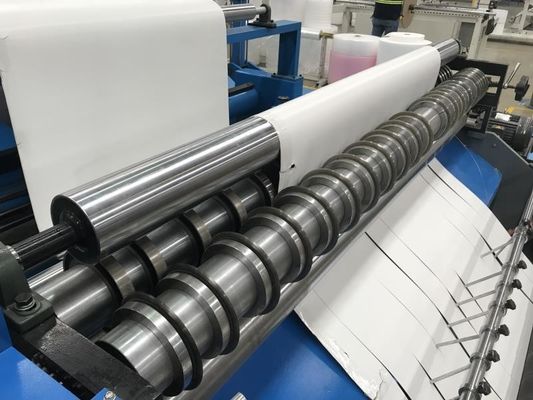

  • Heavy duty slitting part for good slitting quality.
  • Frequency converter for controlling synchronous belt with low noise.
  • Keep 1-2mm distance between every two neighboring small paper reels.
  • Single ground roller type rewinding part. It is with low center of gravity and is easy for unloading paper reels after rewinding.
  • Different machine width could be customized.



Specification:

Model ZFQ-2000C
Working speed 0-200m/min
Max. width of jumbo roll 2000mm
Min width of jumbo roll 900mm
Max. diameter of jumbo roll Ф1500mm
Max. weight of jumbo roll 2000KG
Paper grammage 125gsm-600gsm (kraft paper)
80gsm-150gsm (office paper)
Core diameter of raw paper roll 3"(76mm) or customized
Rewind paper roll width Min. 40mm
Rewind paper roll diameter Max.1500mm
Quantity of slitting blade 20 pcs
Power supply

19KW,380V, 50HZ/60HZ, 38A

19KW,220V, 50HZ/60HZ, 76A

19KW,440V, 50HZ/60HZ, 38A

Working temperature 0-50℃
Working humidity ≦70%
Dimension 5100×4400×1600mm
Working area 8000x5000x1600mm
Weight 4770kg
Operator 1
Paper stand Shaftless type hydraulic stand




Other items:

Main bearing HRB brand
Pneumatic part AirTec brand
Hydraulic station Tian Yuan
Air switch Chint
Frequency converter INOVANCE
Contactor Siemens
Time relay Chint
Relay Omron
Indicating light Siemens
Buttons Siemens




Photos:

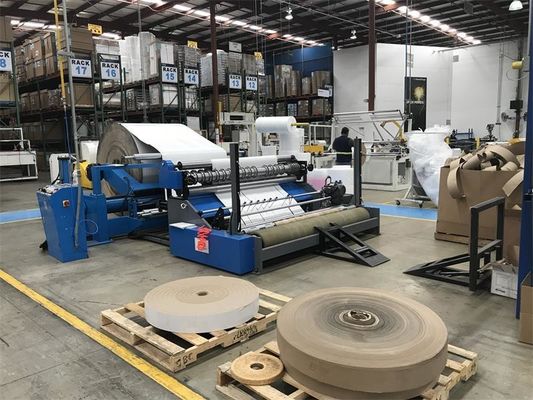

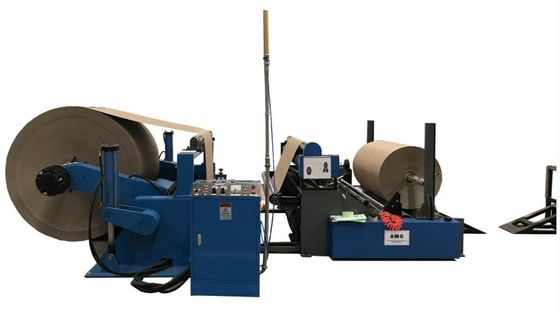

220V 380V 415V Paper Edge Protector Machine 125 - 600gsm Kraft Paper Slitter Rewinder 0

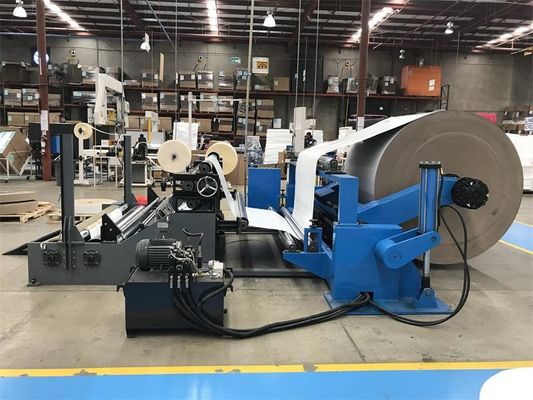

220V 380V 415V Paper Edge Protector Machine 125 - 600gsm Kraft Paper Slitter Rewinder 1
