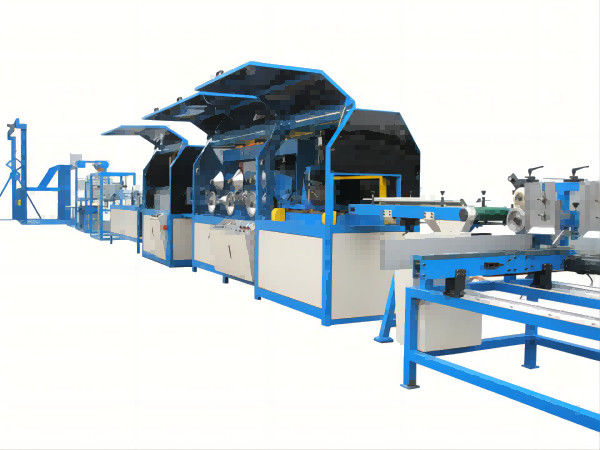

Automatic Paper Edge Protector Machine 32KW High Speed 70m/min

Automatic Paper Edge Protector Machine 32KW High Speed 70m/min
Automatic Paper Edge Protector Machine 32KW High Speed 70m/min
Automatic Paper Edge Protector Machine 32KW High Speed 70m/min Automatic Paper Edge Protector Machine 32KW High Speed 70m/min

Large Image :  Automatic Paper Edge Protector Machine 32KW High Speed 70m/min

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: ZHJ-120G
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 5 sets per month
Contact Now

Automatic Paper Edge Protector Machine 32KW High Speed 70m/min

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Speed: Max. 70m/min. L Edge Protector Size: 30-110mm (could Be Symmetrical And Asymmetrical)
L Edge Protector Thickness: 2.5-10mm Control: Automatic
Highlight:

Paper Edge Protector Machine 70m/Min

,

Paper Edge Protector Machine 32KW

High Speed Paper edge Protector Line

(Model: ZHJ-120G, For making L-profile edge protector only)





Characteristics:

  • ZHJ-120G model is for making L-profile protector only and maximum working speed is 70m/min.
  • Automatic counter for calculating production.
  • Gluing section can control glue temperature and supply glue with fixed volume automatically. So it makes ZHJ-120G machine can produce edge protector with fast speed and good quality at low temperature (e.g. in Winter).
  • Hoist is equipped to load the paper reel to save labor.

Specification 1:



Model ZHJ-120G
Working speed Max. 70m/min

Edge board length

Tested with edge board size 50x50x5mm

 Speed Min.length Max.length Angle degree
70m/min 2000mm No.limit 120°-130°
60m/min 1500mm No.limit 95°-110°
50m/min 1000mm No.limit 85°-95°
40m/min 1000mm No.limit 85°-90°
30m/min 800mm No.limit 85°
L edge protector size

30-110mm (could be symmetrical and asymmetrical)



Min. size 30mm

Subject to the following restrictions:

1) Edge board thickness not more than 4mm

2) working speed not more than 30m/min



Max. size 110mm

Subject to the following restrictions:

  • Edge board thickness not more than 3mm
  • working speed not more than 30m/min



COULD BE SYMMETRICAL AND ASYMMETRICAL
L edge protector thickness

2.5-10mm



Min. thickness 2.5mm

Subject to the following restrictions:

1) Edge board size not more than 110mm

2) working speed not more than 30m/min



Max. thickness 10mm

Subject to the following restrictions:

1) Edge board size not more than 90mm

working speed not more than 30m/min





Specification 2:

Model ZHJ-120G
Inner paper grammage 420-600g/m2 recycled paper, paper surface should be rough
Surface paper grammage 175-250gsm kraft
Core diameter of paper reel 3"(76mm)
Layers 3-13
Glue

Content 1: Kaolin (AI203 · 2SiO2 · 2H2O)

Content 2: Polyvinyl alcohol (PVA) (C2H4)n

The solid percent is 15% - 25%
Paper reel diameter 1500mm as maximum
Machine dimension 32000x3500x2600mm
Working area 35000x4000x2600mm
Working temperature 0-50℃
Working humidity ≦70%
Machine weight 6500KG
Total power 32KW (include 16KW for heating and 16KW for forming wheel)
Compressed air requirement 0.8MPa/0.2m3 (customer provide)





Operation Conditions

Operating temperature 10℃-50℃
Installation place room temperature 10℃-50℃
Relative Humidity (%) No more than 70%
Elvation 100m



Control system PLC, servo motor, Touch screen (HIM)
Paper stands

Composite stands with hoist for inner paper.

Separate paper stand for surface paper.
Method to load paper roll

Load inner paper rolls with hoist (equipped on ZHJ-120G machine).

Load surface paper roll with manual hydraulic forklift.

No need to stop machine when loading paper rolls.
Paper feeding and laminating Multilayer laminating
Gluing system Multilayer gluing
Glue heating Electrical heating with temperature control system
Glue feeding Automatic feeding with diaphragm pump
Pressing adjustment Pneumatic control
Protector heating Electrical heating
Cut method Cam structure cutter
Quantity of cutter 1 cutter
Min cut length 80cm
Cutting precision ±1mm
Stacker Automatic stacking
Operator 2-3 workers
Required container One 40"container



Details of ZHJ-120G machine:



Other items:

Main bearing SKF brand
Electric parts Schneider brand
Pneumatic part AirTec brand



Photos:



Automatic Paper Edge Protector Machine 32KW High Speed 70m/min 0Automatic Paper Edge Protector Machine 32KW High Speed 70m/min 1Automatic Paper Edge Protector Machine 32KW High Speed 70m/min 2Automatic Paper Edge Protector Machine 32KW High Speed 70m/min 3Automatic Paper Edge Protector Machine 32KW High Speed 70m/min 4Automatic Paper Edge Protector Machine 32KW High Speed 70m/min 5Automatic Paper Edge Protector Machine 32KW High Speed 70m/min 6Automatic Paper Edge Protector Machine 32KW High Speed 70m/min 7Automatic Paper Edge Protector Machine 32KW High Speed 70m/min 8Automatic Paper Edge Protector Machine 32KW High Speed 70m/min 9
